Figure 2

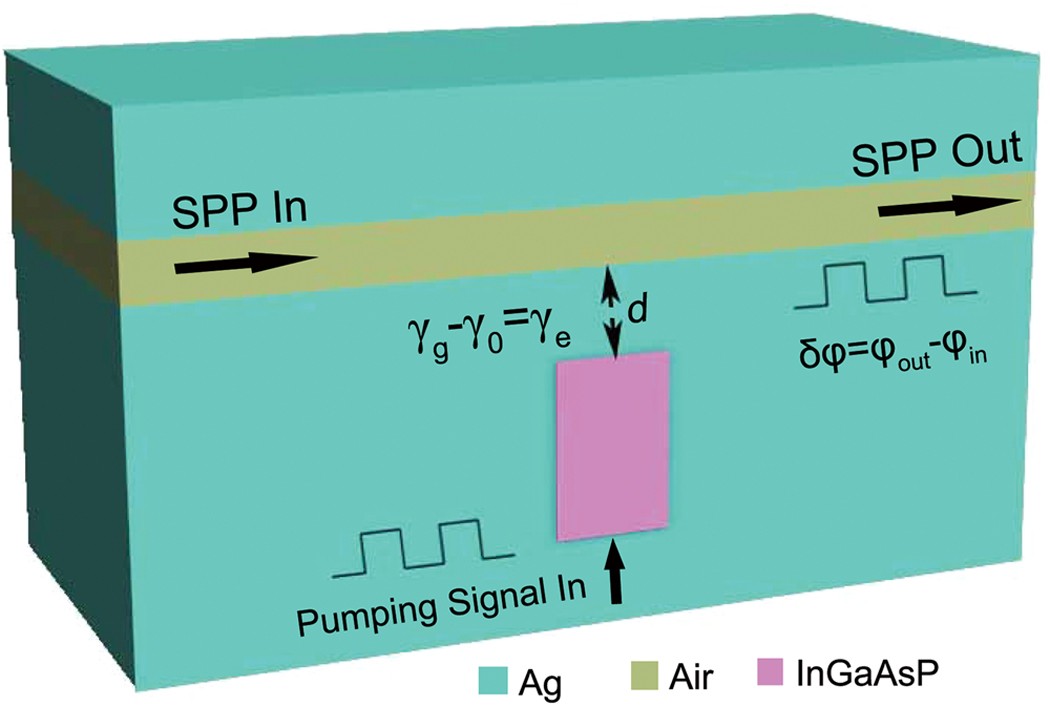

Silver-air-silver MIM waveguide side-coupled to a rectangular cavity filled with InGaAsP.
The cavity has the height of 150 nm and the width of 100 nm. The thickness of the air gap of the waveguide is 50 nm. γg − γ0 = γe means the loss-overcompensated coupling.
