Figure 1
From: Exotic vortex lattices in a rotating binary dipolar Bose-Einstein condensate

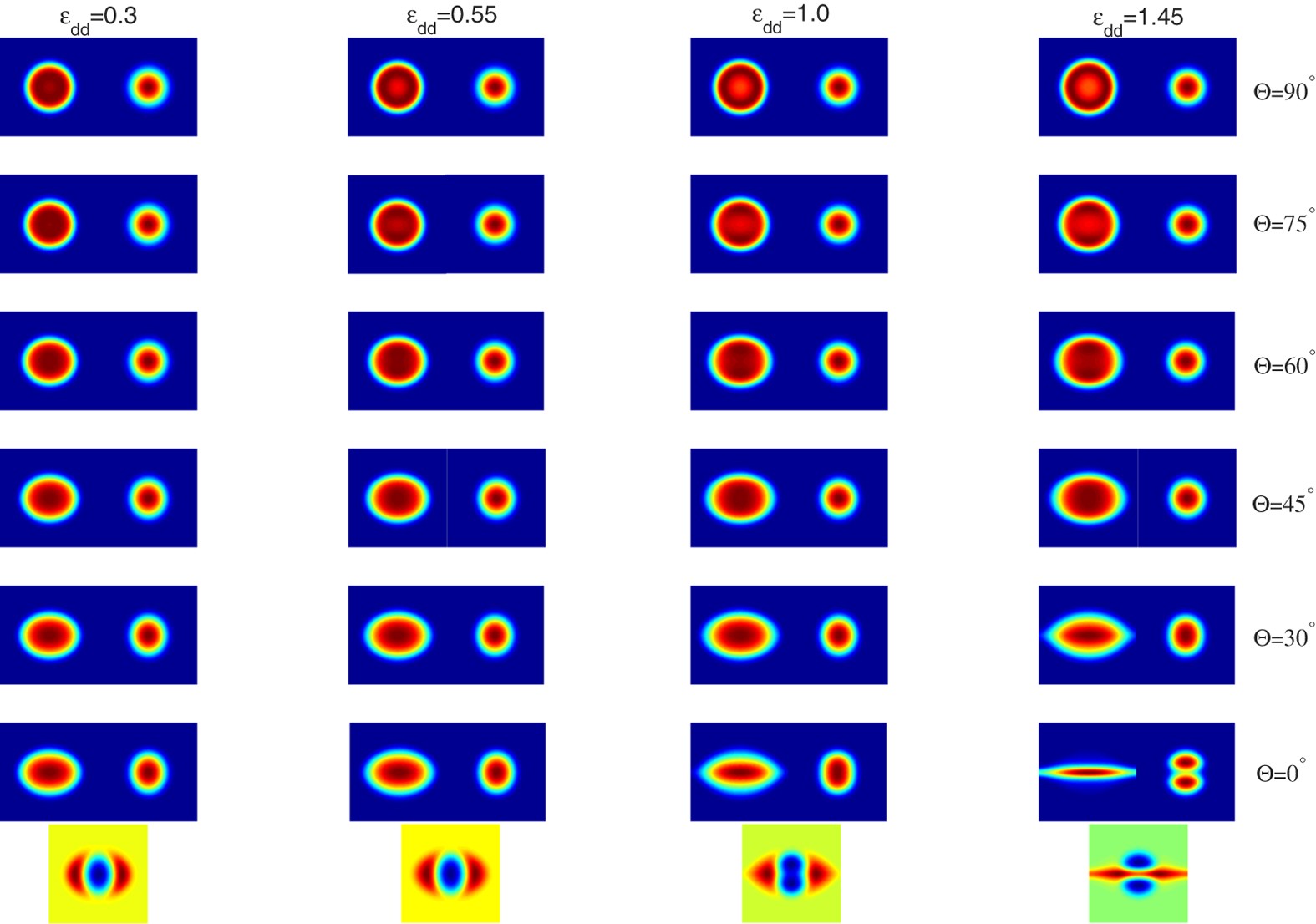

The two-dimensional atom density profiles for each component as a function of the orientation of the dipoles for the nonrotational case.
The polarization axis being at angle Θ = 90°, 75°, 60°, 45°, 30°, 0°. The relative strength between the dipolar and contact interactions are set as εdd = 0.3, 0.55, 1.0, 1.45. Here the system is set as rest with Ω = 0 and all the contact interactions are fixed at g = 55. Note that for each plot, the left (right) one is the density of the dipolar (scalar) component and the last row denotes the density difference of such two components for Θ = 0°. The scale of each figure is 6.0 × 6.0 in dimensionless unit.
