Figure 4
From: Exotic vortex lattices in a rotating binary dipolar Bose-Einstein condensate
Self-induced squeezing to Kernel-shell transition induced by the orientation of the dipoles.

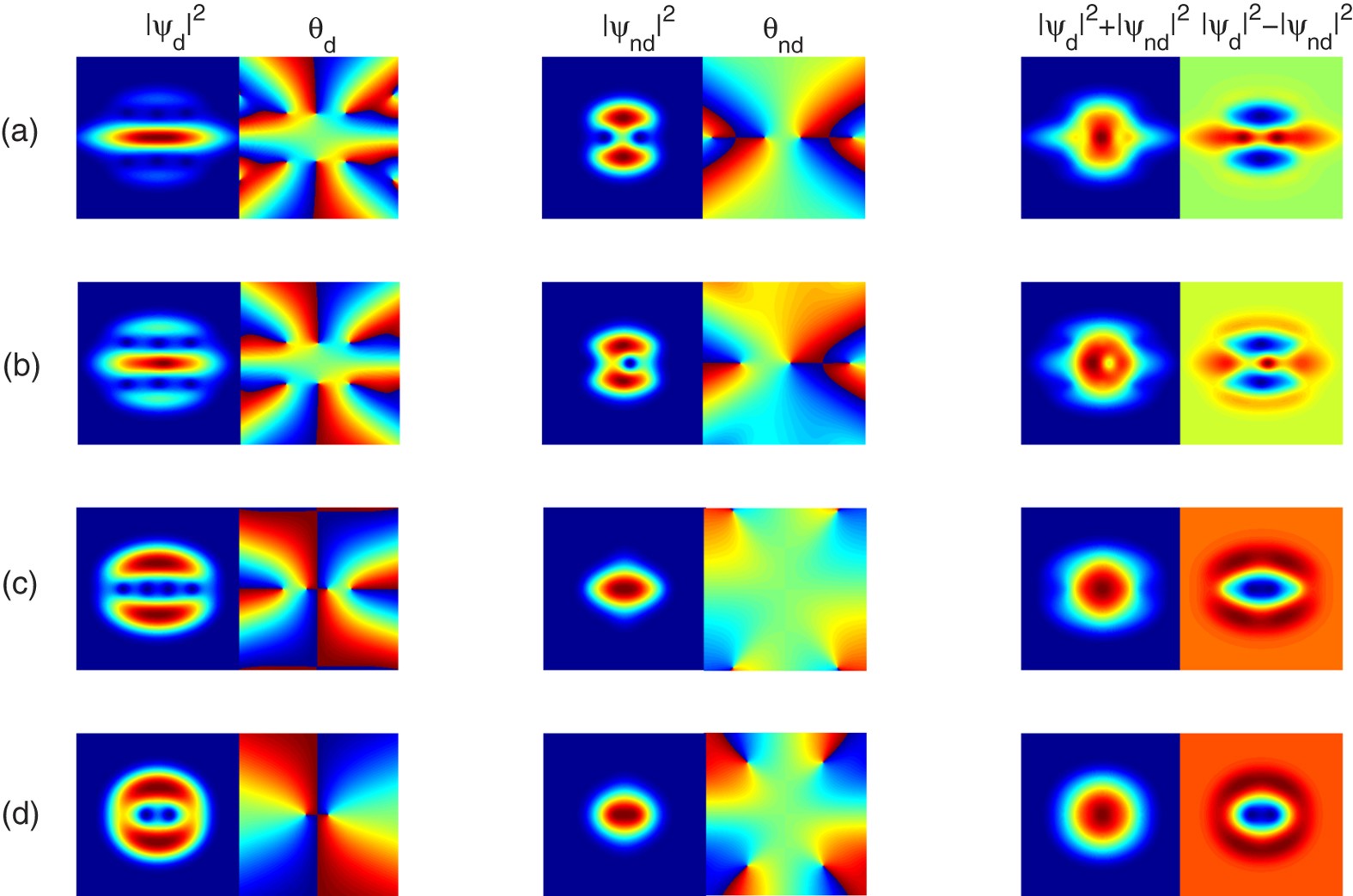

The two-dimensional atom density and phase profiles as a function of the orientation of the dipoles, for Θ = 30°, 45°, 60°, 75°, corresponding to (a–d), respectively. Here the rotation frequency is fixed to Ω = 0.5, the relative strength between the dipolar and contact interactions is fixed to εdd = 1.0 and all the contact interactions are fixed at g = 55. The scale of each figure is 6.0 × 6.0 in dimensionless unit.
