Figure 5

From: Forest gaps slow the sequestration of soil organic matter: a humification experiment with six foliar litters in an alpine forest

Figure 5

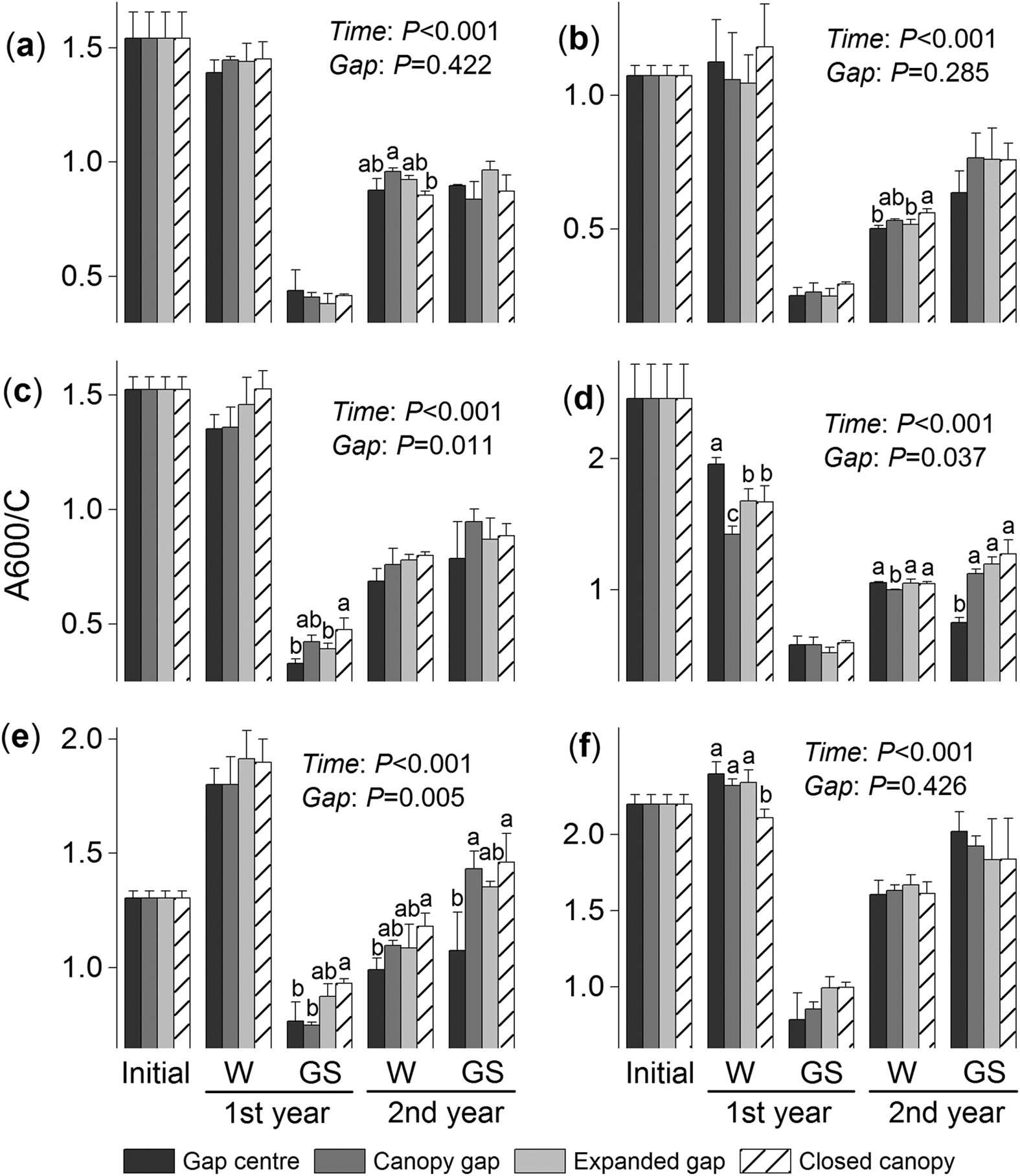

The effects of forest gap positions on the A600/C values of (a) fir, (b) cypress, (c) larch, (d) birch, (e) willow and (f) azalea foliar litter during the winter (W) and growing seasons (GS) of the two-year humification experiment. Error bars indicate the standard deviations (n = 3).

P-values for incubation time (Time) and gap position treatments (Gap) from repeated measures ANOVA are shown for each species. Values at the same stage with different letters are significantly (P < 0.05) different among the four positions.
