Figure 1

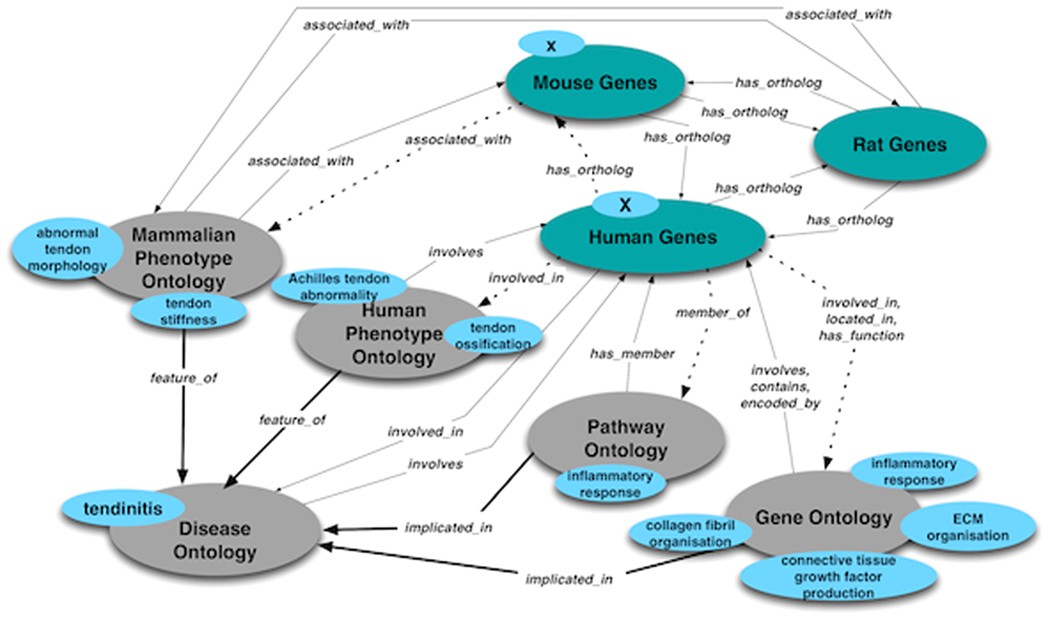

Tendinopathy specific BioOntological Relationship Graph (BORG) semantic schema.

Heavy solid arrows indicate the mapping of phenotypes and functions known to be features of tendinopathy with the disease ontology term “tendinitis”. Dashed arrows indicate the possible direct and transitive paths by which a hypothetical human gene “X” may be linked to “tendinitis”.
