Figure 2

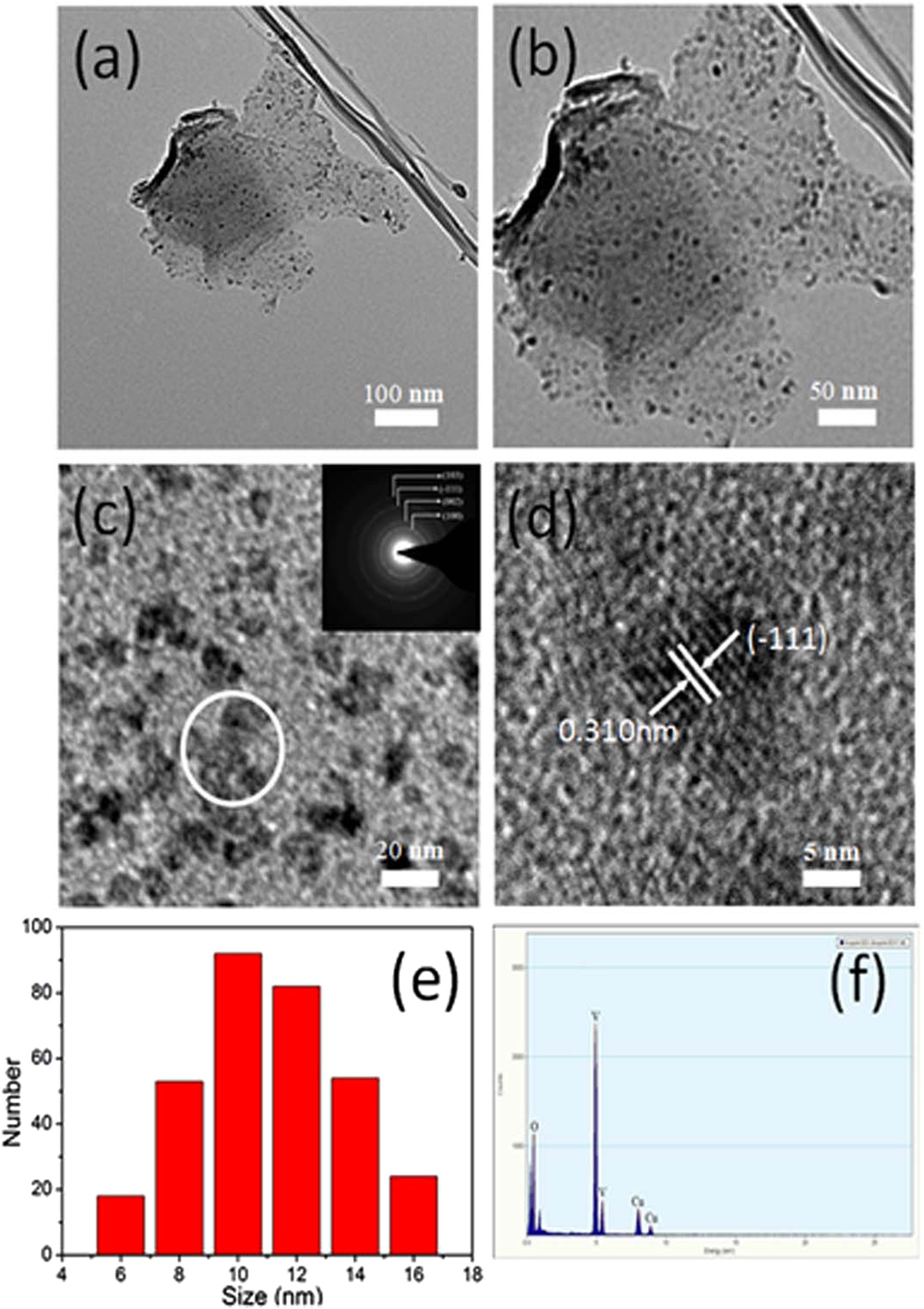

(a–c) TEM images and (d) high-resolution TEM image of the LVO NPs-GNs composites. Inset in (c) is the electronic diffraction pattern corresponding to the LVO NPs. (e) Histogram diagram of the LVO diameter. (f) EDX spectrum of the LVO NPs-GNs composites. The copper signals are from the Cu grids.
