Figure 5

From: Ultradispersed Nanoarchitecture of LiV3O8 Nanoparticle/Reduced Graphene Oxide with High-Capacity and Long-Life Lithium-Ion Battery Cathodes

Figure 5

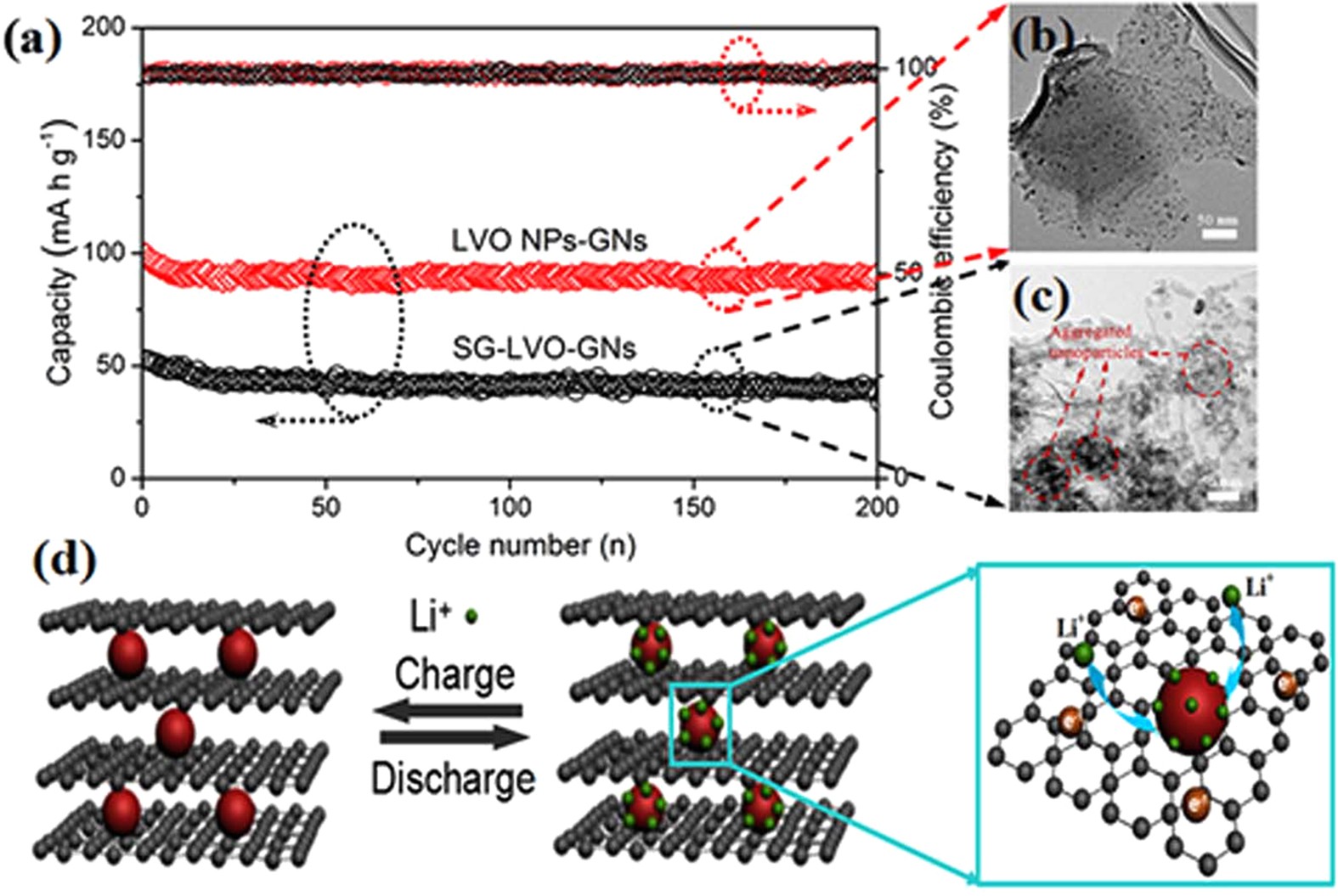

(a) Left axis: cycling performance of the LVO NPs-GNs and SG-LVO-GNs electrodes at current densities of 3 A g−1. Right axis: coulombic efficiency of the LVO NPs-GNs and SG-LVO-GNs electrodes at current densities of 3 A g−1. (b,c) TEM images of LVO NPs-GNs and SG-LVO-GNs. (d) Schematic drawing of the charge/discharge processes of the LVO NPs-GNs electrode cathode.
