Figure 10

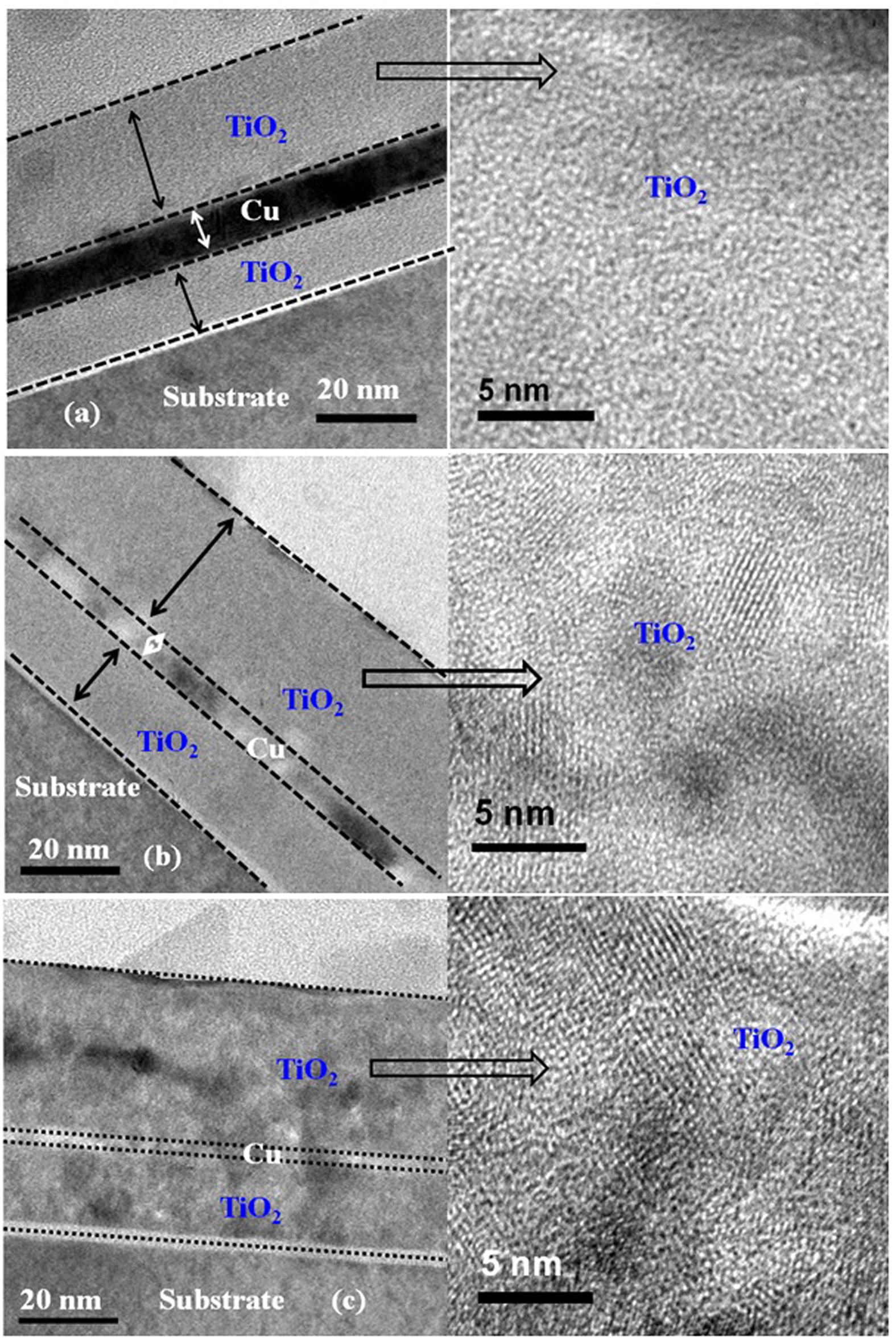

Cross-sectional high resolution TEM of the TiO2/Cu/TiO2 THR for the (a) as-deposited samples, after annealed (b) at 500 °C and (c) 600 °C for 1 min in nitrogen ambient. Crystal quality improved after thermal treatment; however, Cu layer partially oxidized after annealed at 600 °C.
