Figure 4
From: Negative regulation of initial steps in skeletal myogenesis by mTOR and other kinases
Pathway and gene ontology analysis identify processes linked with triggering skeletal muscle differentiation.

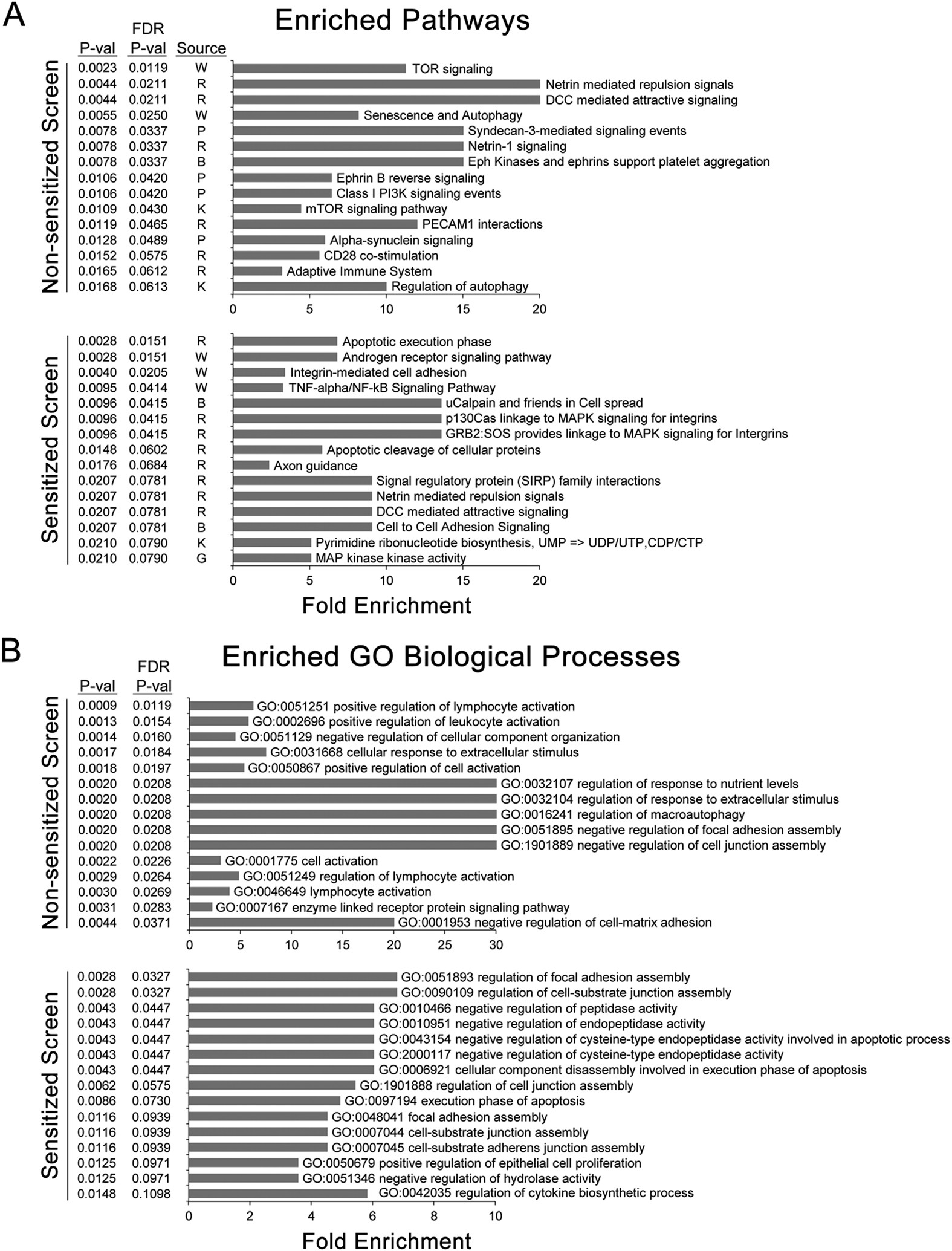

Charts showing top 15 (A) biological pathways and (B) processes enriched with and without PD 0332991 as sensitizer. Fold enrichment is calculated as percentage of hits in the indicated pathway divided by the expected percentage based on the number of tested kinases in that pathway. Source indicates specific database: B, BioCarta; G, GenMAPP; K, KEGG; P, Pathway Interaction Database; R, Reactome; W, Wiki Pathways.
