Figure 4

Phenotypes of stamens in SlGLO1-RNAi lines.

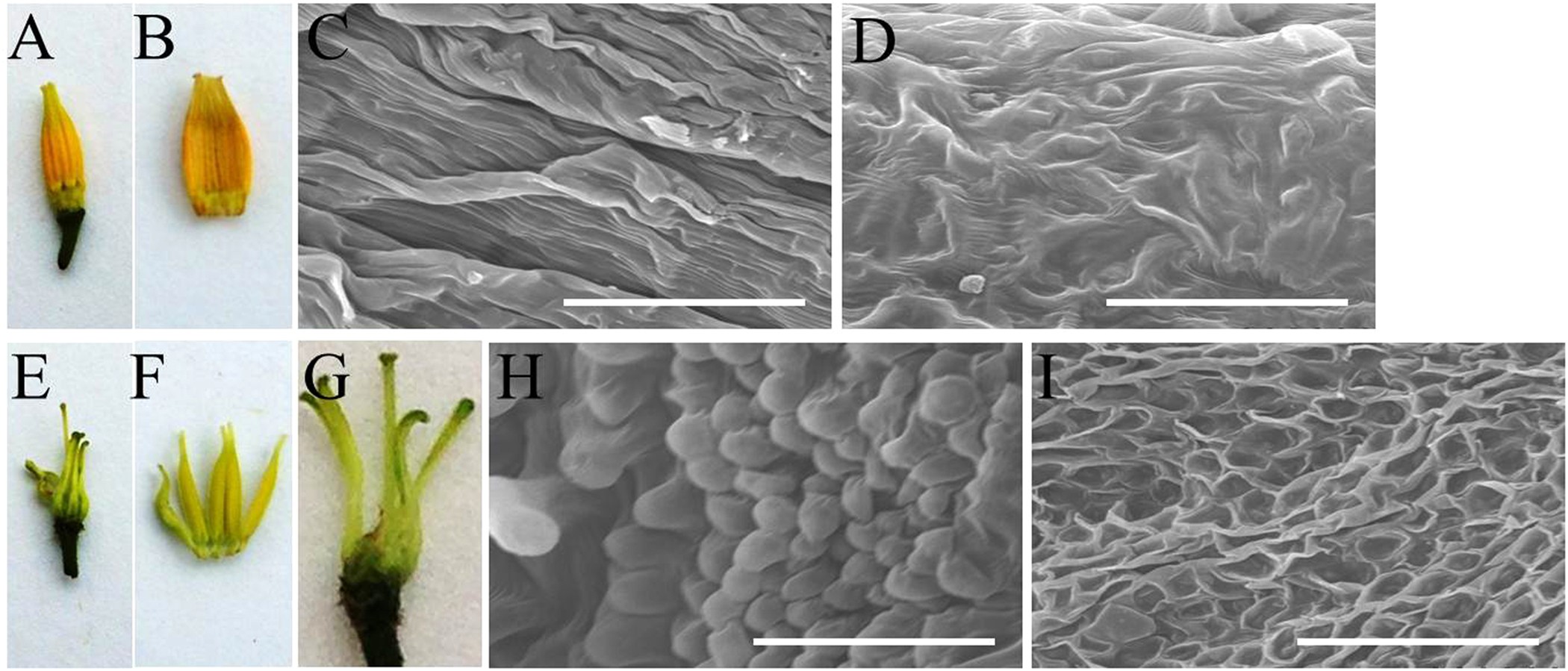

Wild type, (A–D); SlGLO1-RNAi, (E–I). Bars = 60 μm in (C,D,H,I). (A,B,E–G) are digital photographs and (C,D,H,I), are scanning electron micrographs. (A) Wild-type stamen. (B) Split wild-type stamen. (C) Wild-type adaxial stamen proximal end. (D) Wild-type adaxial stamen distal end. (E) Stamen from SlGLO1-RNAi line. (F) Stamens of SlGLO1-RNAi lines are unclosed. (G) Silencing of SlGLO1 results in carpelloid stamens. (H) SlGLO1-RNAi line adaxial stamen proximal end. (I) SlGLO1-RNAi line adaxial stamen distal end.
