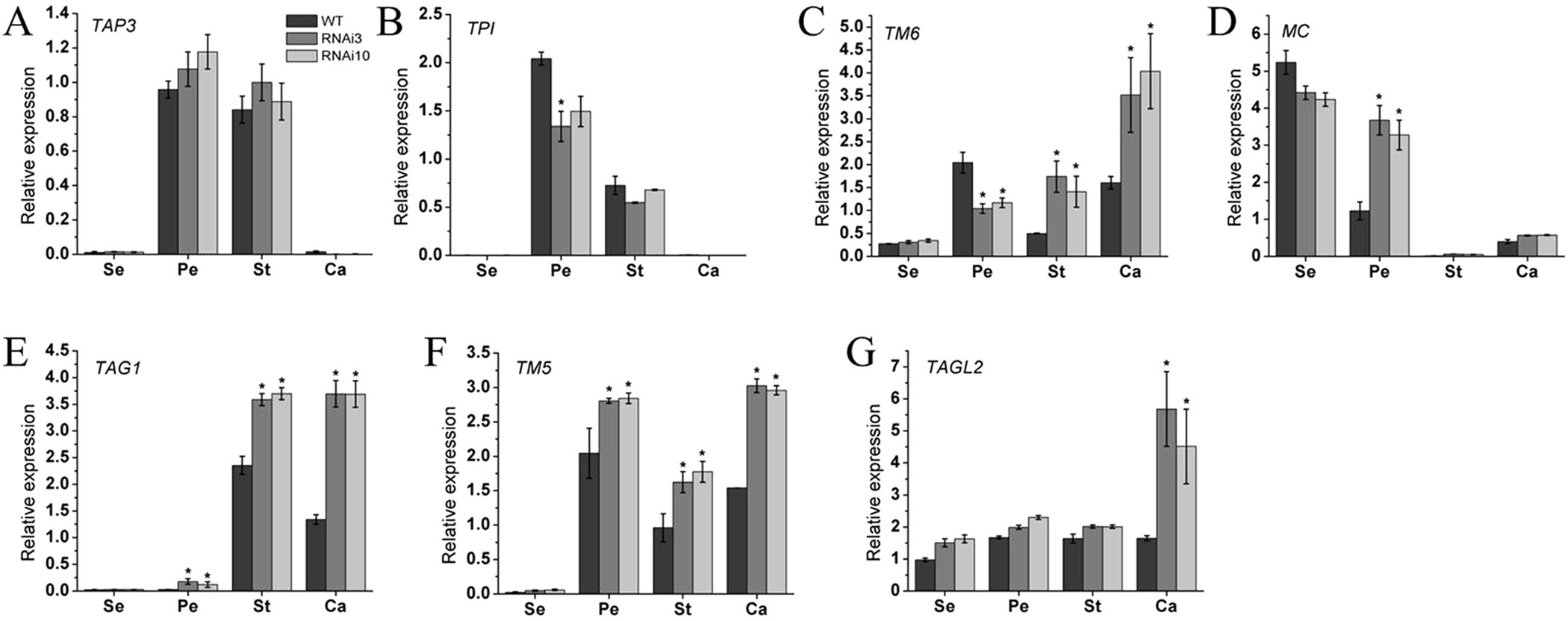

Figure 7
Expression Patterns of other floral organ identity genes in wild-type and RNAi Lines.
Se, sepal; Pe, petal; St, stamen; Ca, carpel. (A,B) respectively represents expression analysis of TAP3, TPI, TM6 (B-class genes) in wild-type and transgenic lines. (D–G) respectively represents expression analysis of MC (A-class gene), TAG1(C-class gene), TM5 and TAGL2 (E-class genes) in wild-type and transgenic lines. Each value represents the mean ± SE of three replicates. Asterisks indicate a significant difference (P < 0.05) between WT and transgenic lines.
