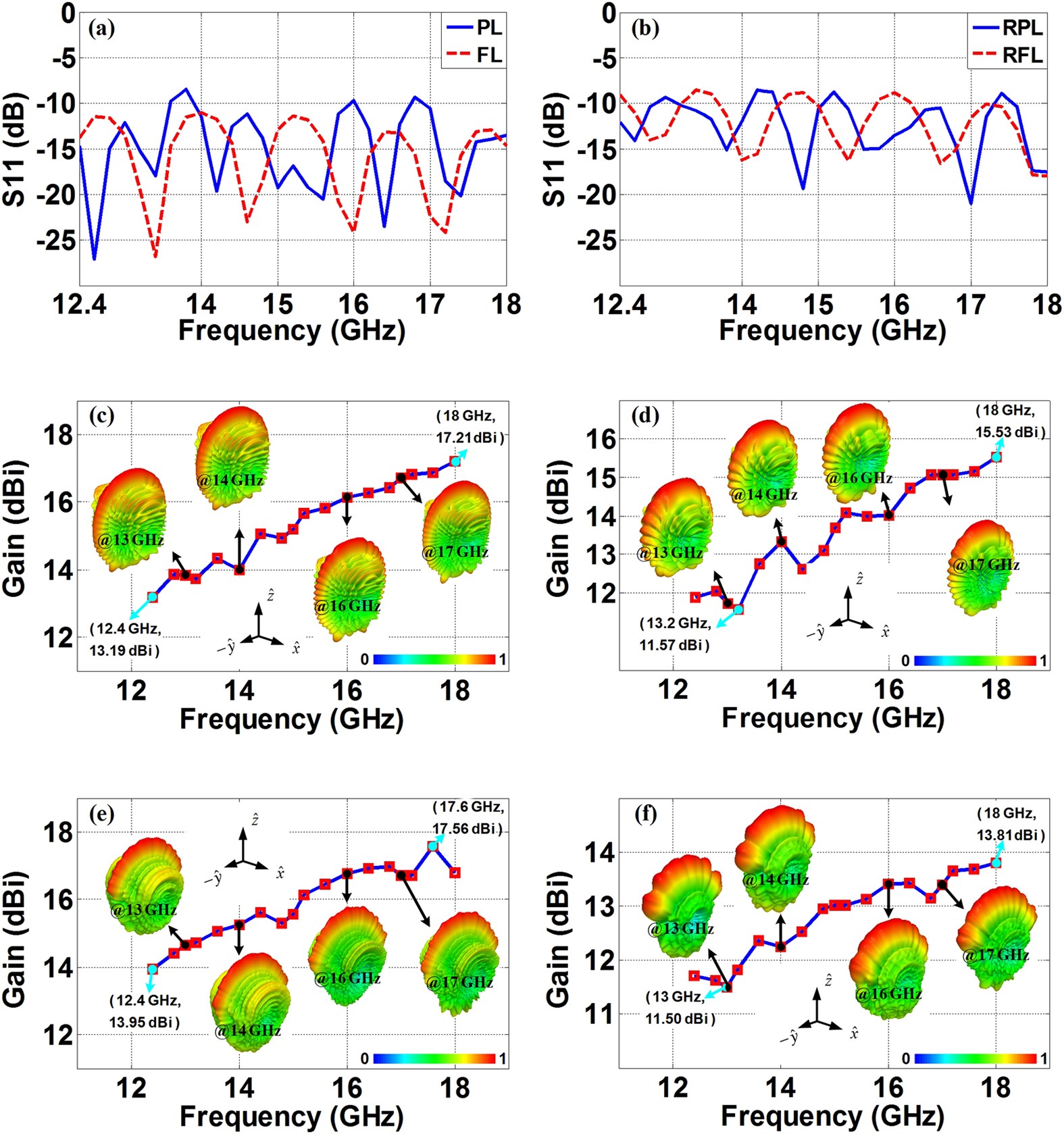

Figure 4
Radiation performances of the transformation-optical fan-beam lenses from 12.4 GHz to 18 GHz.
The reflection coefficients of the 2D fan-beam lenses (a) and the 3D fan-beam lenses (b), The gains of the PL (c), the FL (d), the RPL (e) and the RFL (f).
