Figure 2

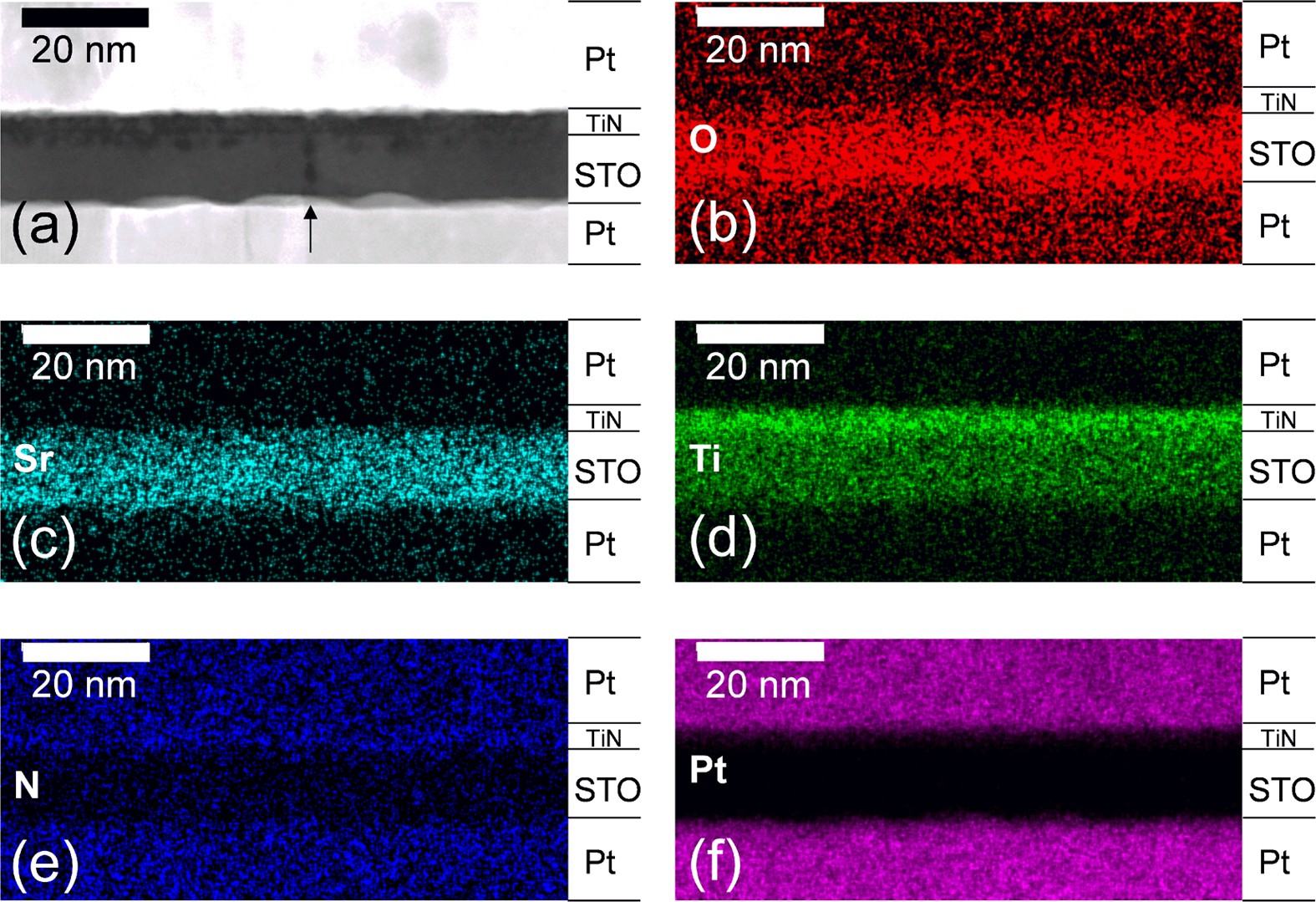

(a) Cross-section HAADFF image of Pt/TiN/(500 oC annealed) STO/Pt structure which was electroformed with compliance current of 5 mA. The EDS mapping of (b) O, (c) Sr, (d) Ti, (e) N and (f) Pt elements of the area where (a) was obtained.
