Figure 4: Boxplots of responses in relative change in the number of species in plant functional groups in the alpine meadow.

From: Impacts of different climate change regimes and extreme climatic events on an alpine meadow community

Figure 4

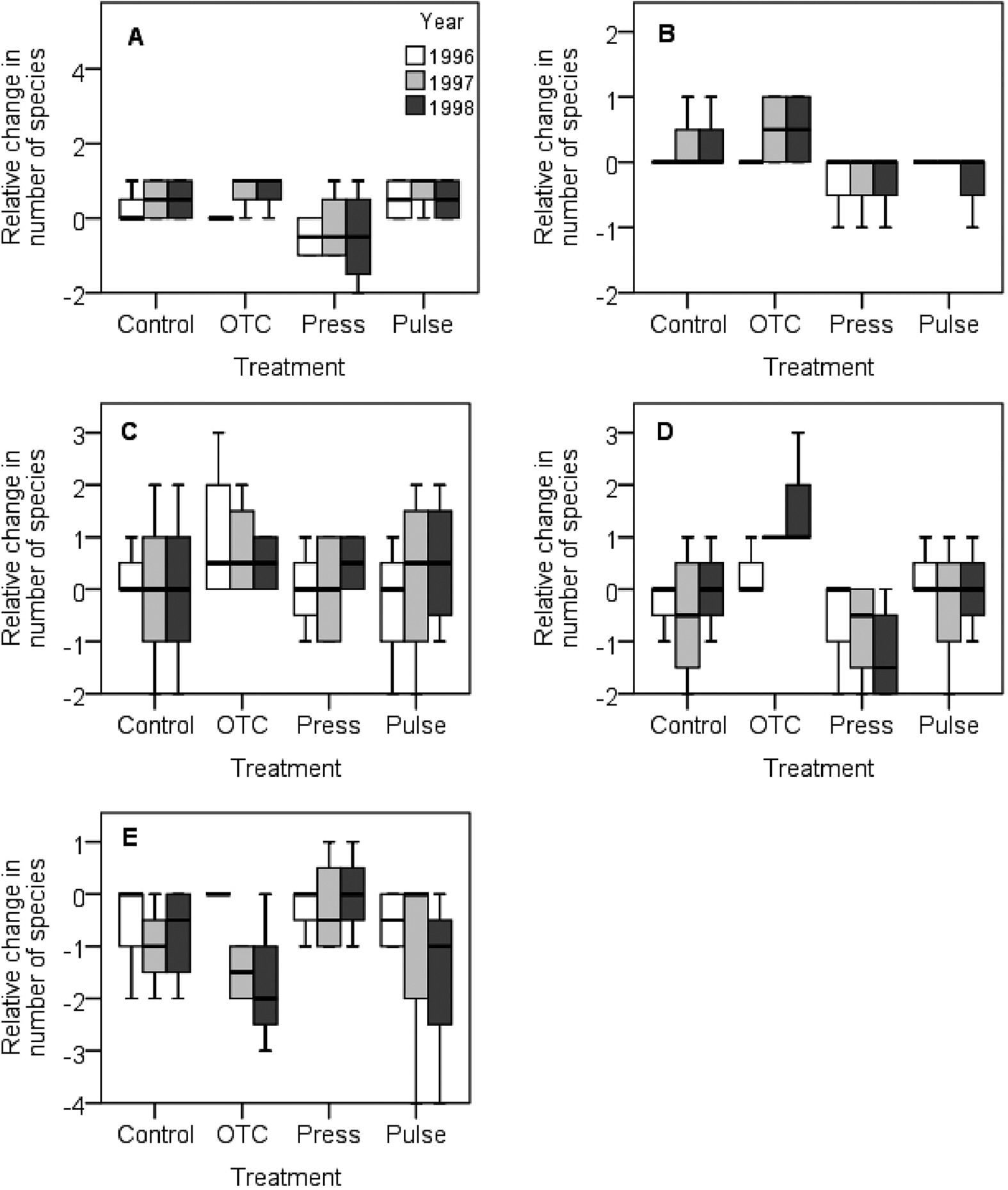

(A) Cushions, (B) deciduous shrubs, (C) evergreens, (D) forbs, and (E) graminoids. Treatments: control (Control), constant warming enhancement using open-top chambers (OTC), a stepwise increase in the magnitude of warming (Press) and a single-summer high-impact warming event (Pulse). Boxplots show the 10th to 90th percentiles of the data; n = 4 plots per treatment.
