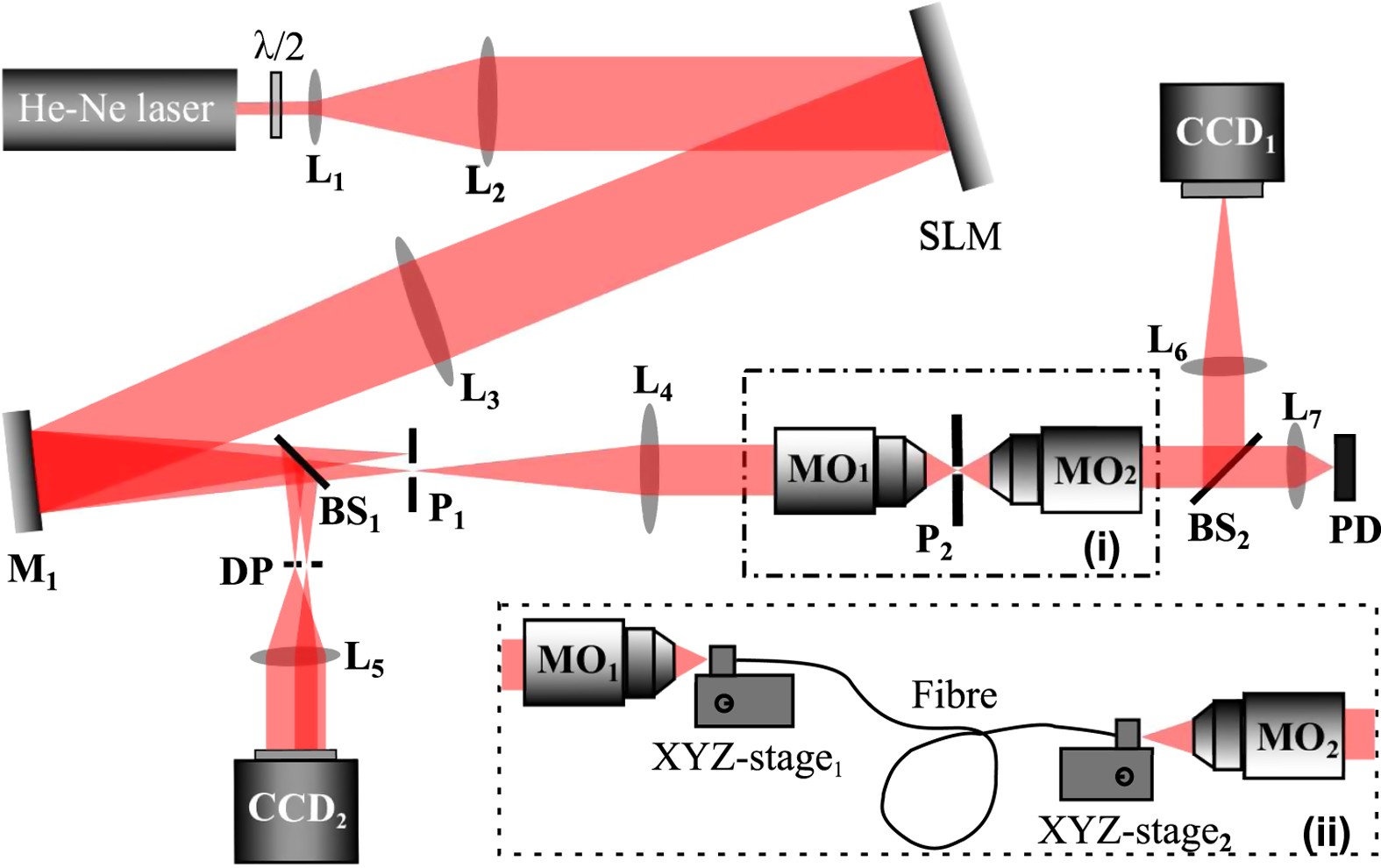

Figure 6: Schematic of the experimental setup.
From: Is there an optimal basis to maximise optical information transfer?
L1–L7 are lenses. P1 and P2 are pinholes. BS1 and BS2 are beam splitters. PD is a photon detector. DP is a double-pinhole. MO1 and MO2 are two identical microscope objectives.
