Figure 3
From: Self-Organizing Maps-based ocean currents forecasting system

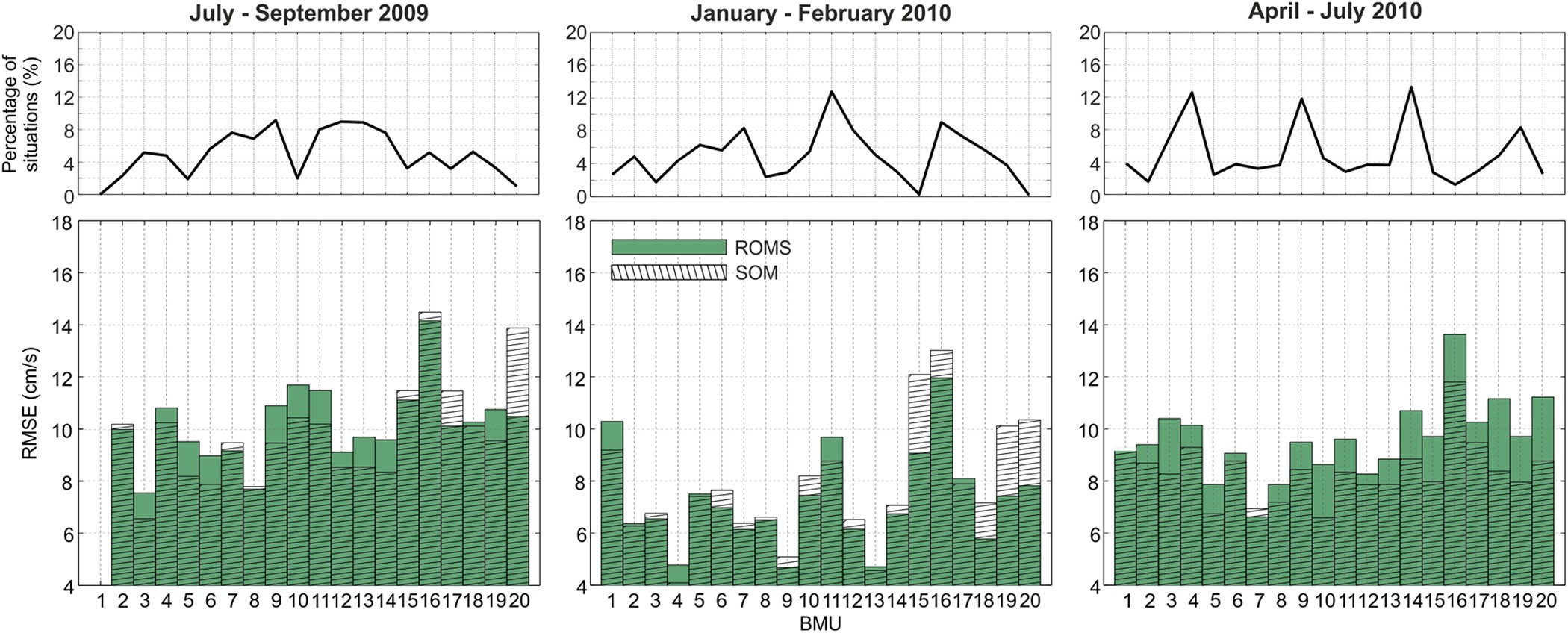

Distribution of root-mean-square error (RMSE) between SOM- and ROMS-derived forecast of surface currents and the respective measurements per BMU and for three testing periods.
Percentage of situations ascribed to a particular BMU is also shown. The figure has been created using MATLAB (www.mathworks.com) software.
