Figure 4
From: Self-Organizing Maps-based ocean currents forecasting system

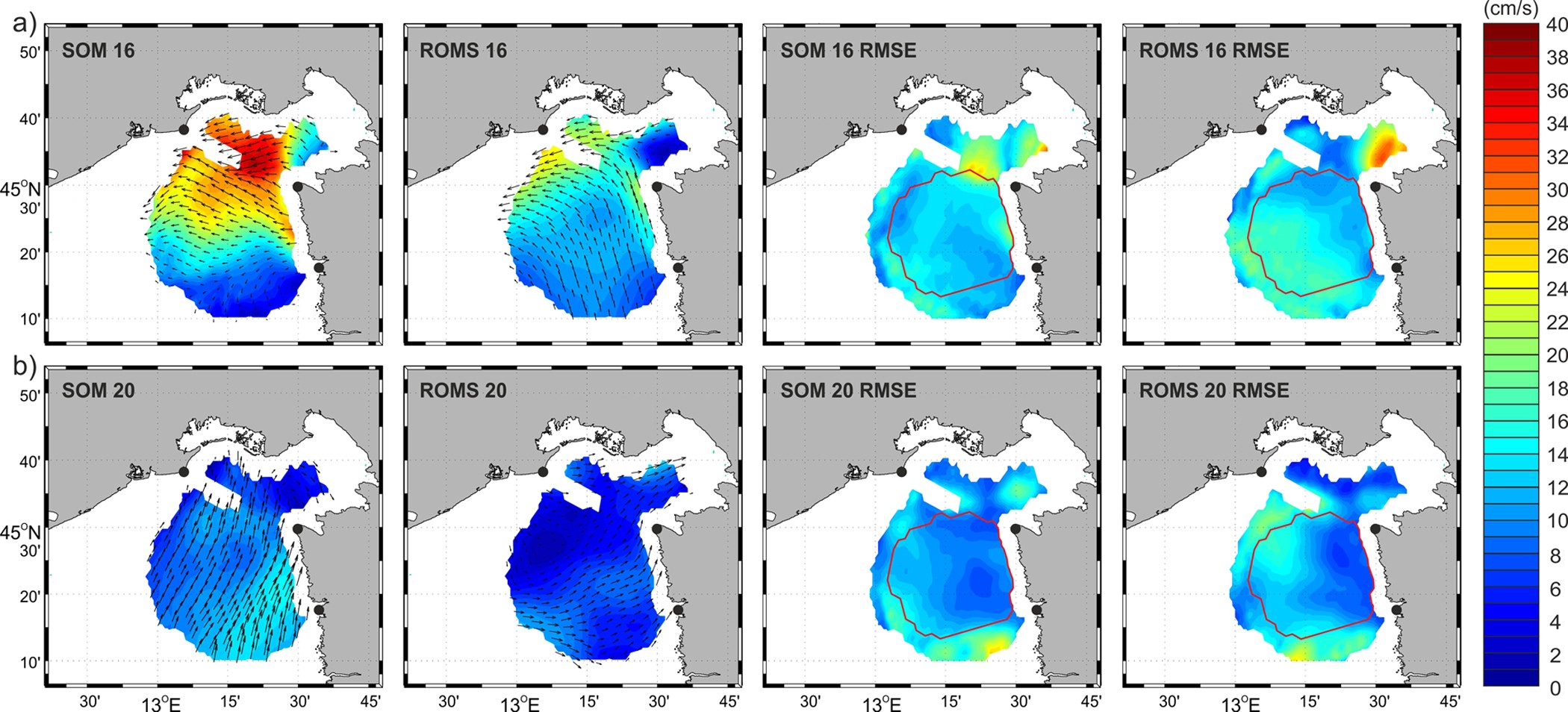

Surface currents obtained by the SOM-based forecasting system, the respective average surface currents obtained by ROMS forecasting system and the RMSE between SOM-based and ROMS-based forecast of surface currents and the measurements, computed for (a) BMU16 (associated with strong bora wind) and (b) BMU20 (associated with sirocco wind). Encircled area includes grid points with at least 60% operational coverage during the testing period. The figure has been created using MATLAB (www.mathworks.com) software.
