Synthesis and Characterization of Zn-RIF Complex.

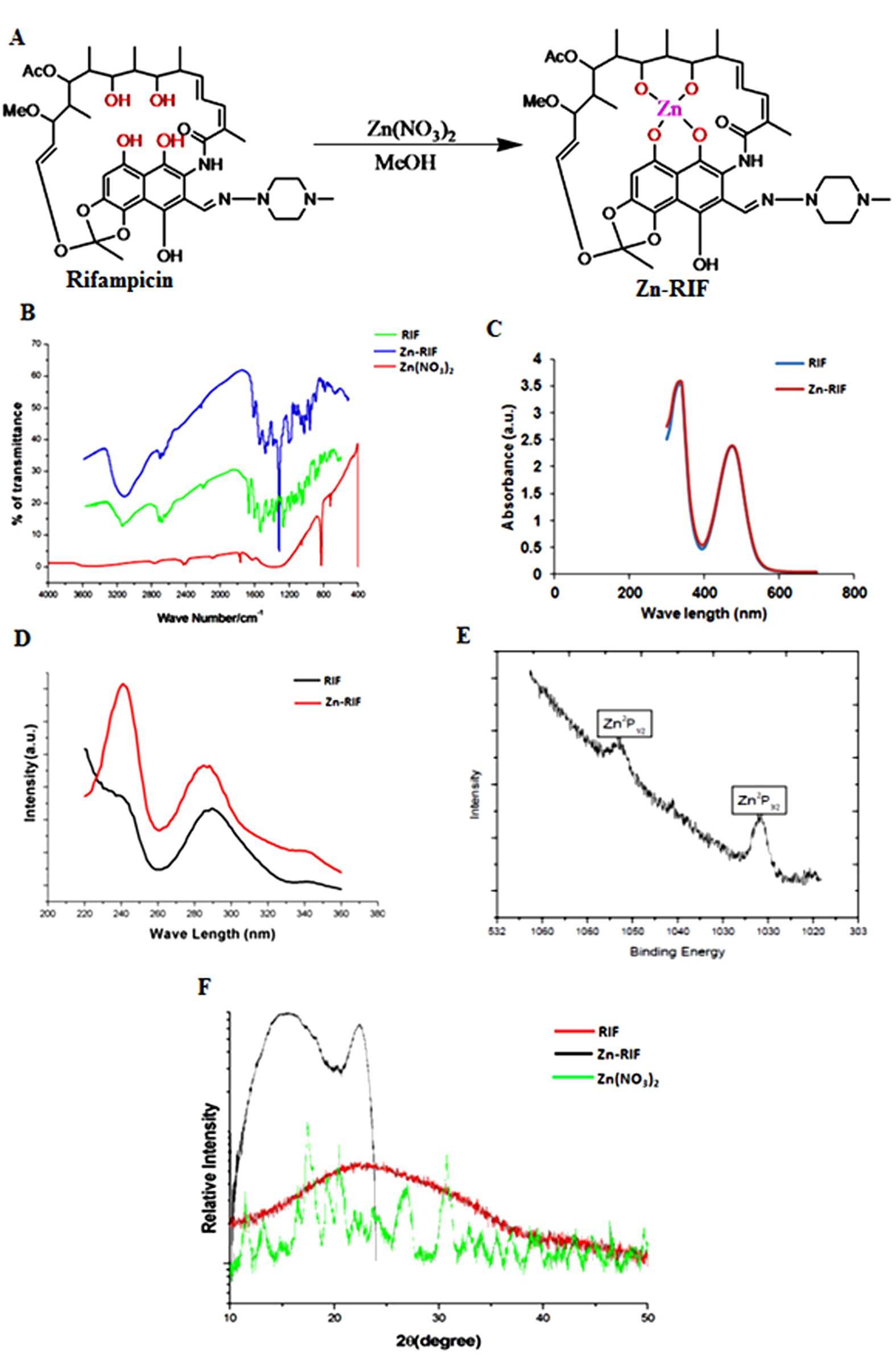

(A) Synthesis of Zinc and rifampicin complex. (B) FTIR spectrum of Rifampicin (green line), Zn-RIF complex (blue line) and Zn(NO3)2 (red line); (C) UV-Vis spectrum of Rifampicin (blue line) and Zn-RIF complex (red line); (D) Photoluminescence spectrum of Rifampicin (black line) and Zn-RIF complex (red line); (E) XPS analysis of Zn-RIF complex; (F) Powder XRD (P-XRD) analysis of Rifampicin (red line), Zn-RIF complex (black line) and Zn(NO3)2 (green line).
