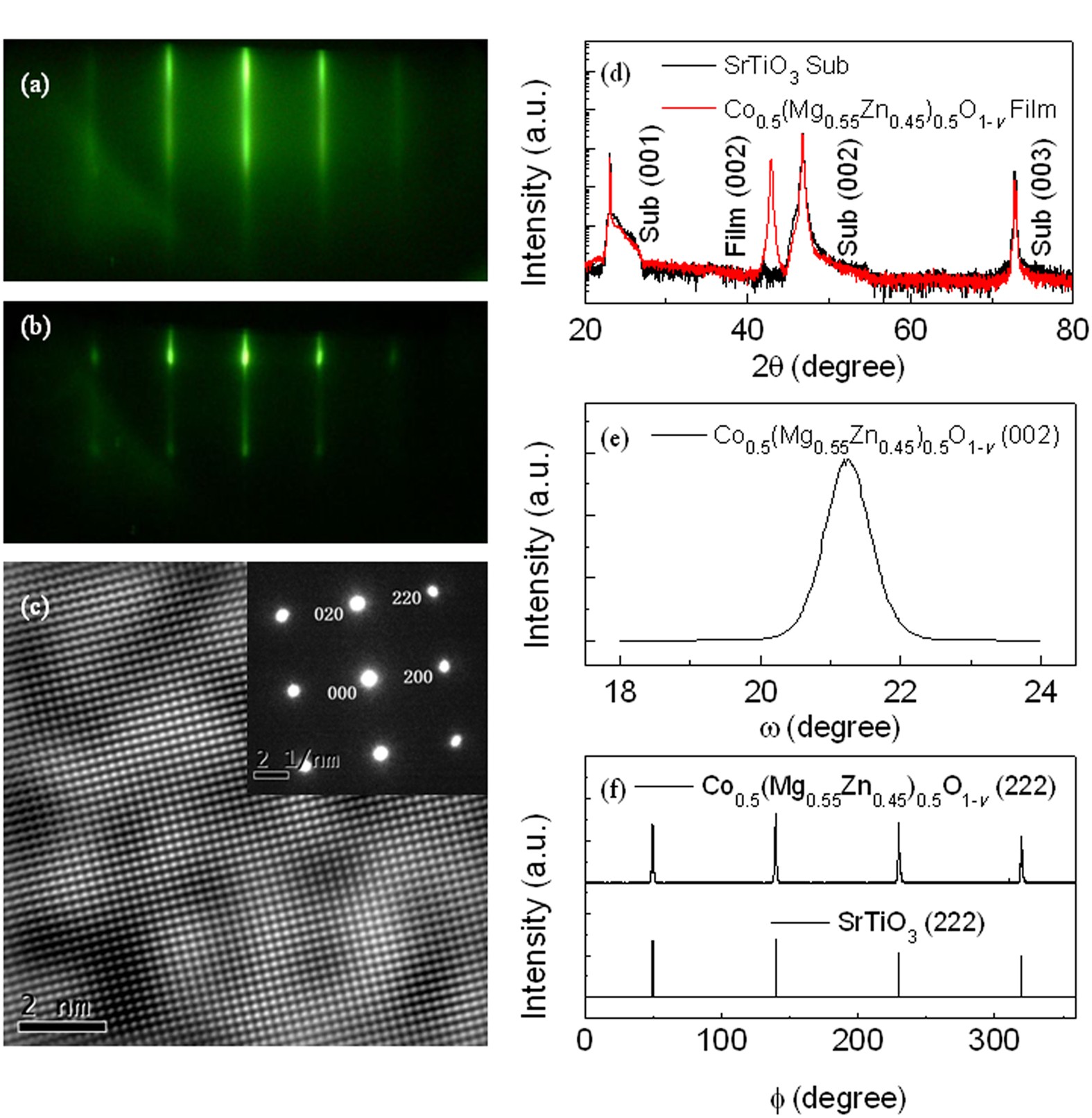

Figure 1: Microstructure of epitaxial single-crystal Co0.5(Mg0.55Zn0.45)0.5O1-v thin films.

From: Oxygen vacancies controlled multiple magnetic phases in epitaxial single crystal Co0.5(Mg0.55Zn0.45)0.5O1-v thin films

Figure 1: Microstructure of epitaxial single-crystal Co0.5(Mg0.55Zn0.45)0.5O1-v thin films.

(a) and (b) RHEED patterns taken along the [110] azimuth for the MgO buffer layer and Co0.5(Mg0.55Zn0.45)0.5O1-v films. (c) High resolution TEM of the Co0.5(Mg0.55Zn0.45)0.5O1-v films, and the inset of (c) shows the SAED results. (d) XRD θ-2θ spectra of the SrTiO3 substrate and Co0.5(Mg0.55Zn0.45)0.5O1-v films. (e) XRD rocking curve of the Co0.5(Mg0.55Zn0.45)0.5O1-v (002) peak. (f) XRD ϕ scans of the SrTiO3 (222) and Co0.5(Mg0.55Zn0.45)0.5O1-v (222) planes.
