Figure 6 | Scientific Reports

Figure 6

From: ESCRT-0 dysfunction compromises autophagic degradation of protein aggregates and facilitates ER stress-mediated neurodegeneration via apoptotic and necroptotic pathways

Figure 6

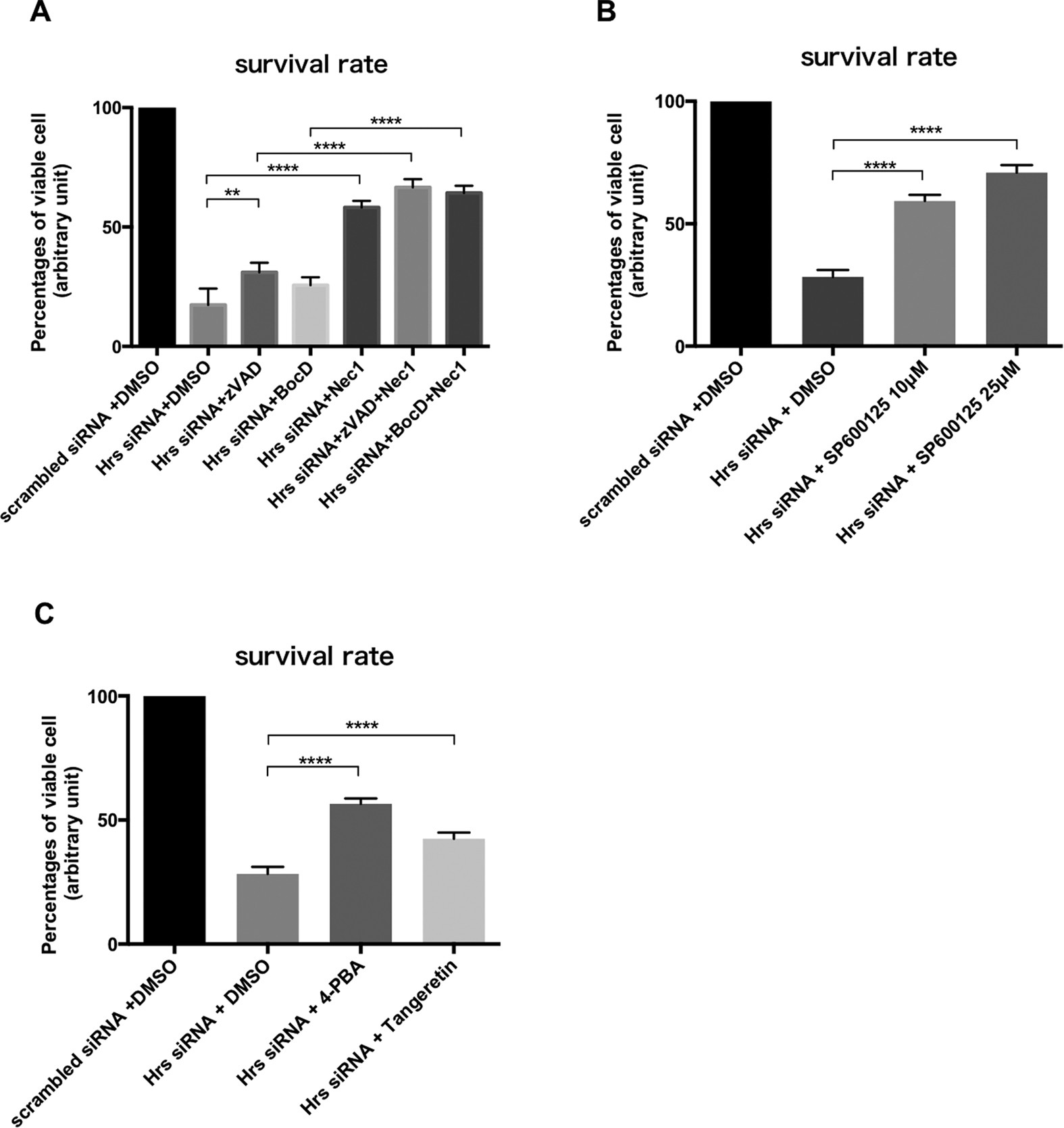

Necroptosis inhibitor as well as pan-caspase inhibitors partially ameliorated neurotoxicity in Hrs-depleted cells.

(A) Treatment with pan-caspase inhibitors (zVAD-fmk or BocD-fmk) or necrostatin-1 (Nec1) significantly counteracted the neurotoxicity induced by the silencing of Hrs. Values are expressed as means ± standard errors. **p < 0.01, ****p < 0.001 (one-way ANOVA followed by Dunnett’s test; n = 4). (B) SP600125 (JNK specific inhibitor) significantly counteracted the neurotoxicity induced by the silencing of Hrs. Values are expressed as means ± standard errors. ****p < 0.001 (one-way ANOVA followed by Dunnett’s test; n = 4). (C) ER stress inhibitors (4-PBA and tangeretin) significantly ameliorated the neurotoxicity induced by the silencing of Hrs. Values are expressed as means ± standard errors. ****p < 0.001 (one-way ANOVA followed by Dunnett’s test; n = 4).
