From: Model-Based Feasibility Assessment of Membrane Biofilm Reactor to Achieve Simultaneous Ammonium, Dissolved Methane, and Sulfide Removal from Anaerobic Digestion Liquor

Figure 1

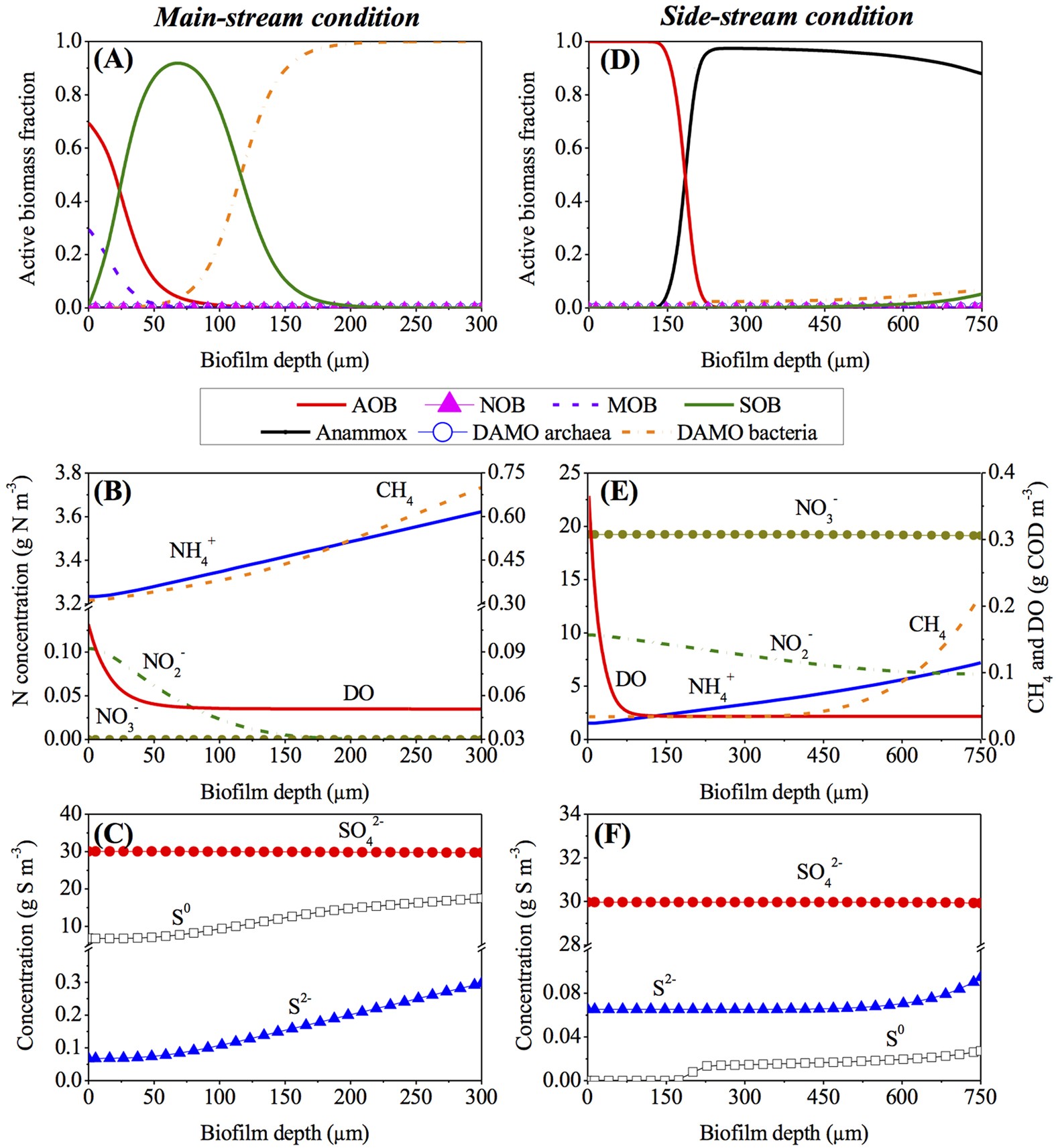

Modeling results of the MBfR for the simultaneous removal of ammonium, dissolved methane, and sulfide from main-stream (A–C) and side-stream (D–F) anaerobic digestion liquor based on Scenario 0 in Table 1 (depth zero represents the membrane surface at the base of the biofilm): (A,D) Microbial population distribution; (B,E) distribution profiles of nitrogen species, methane, and dissolved oxygen; and (C,F) distribution profiles of sulfur species.
