Figure 10
From: Linking magmatism with collision in an accretionary orogen

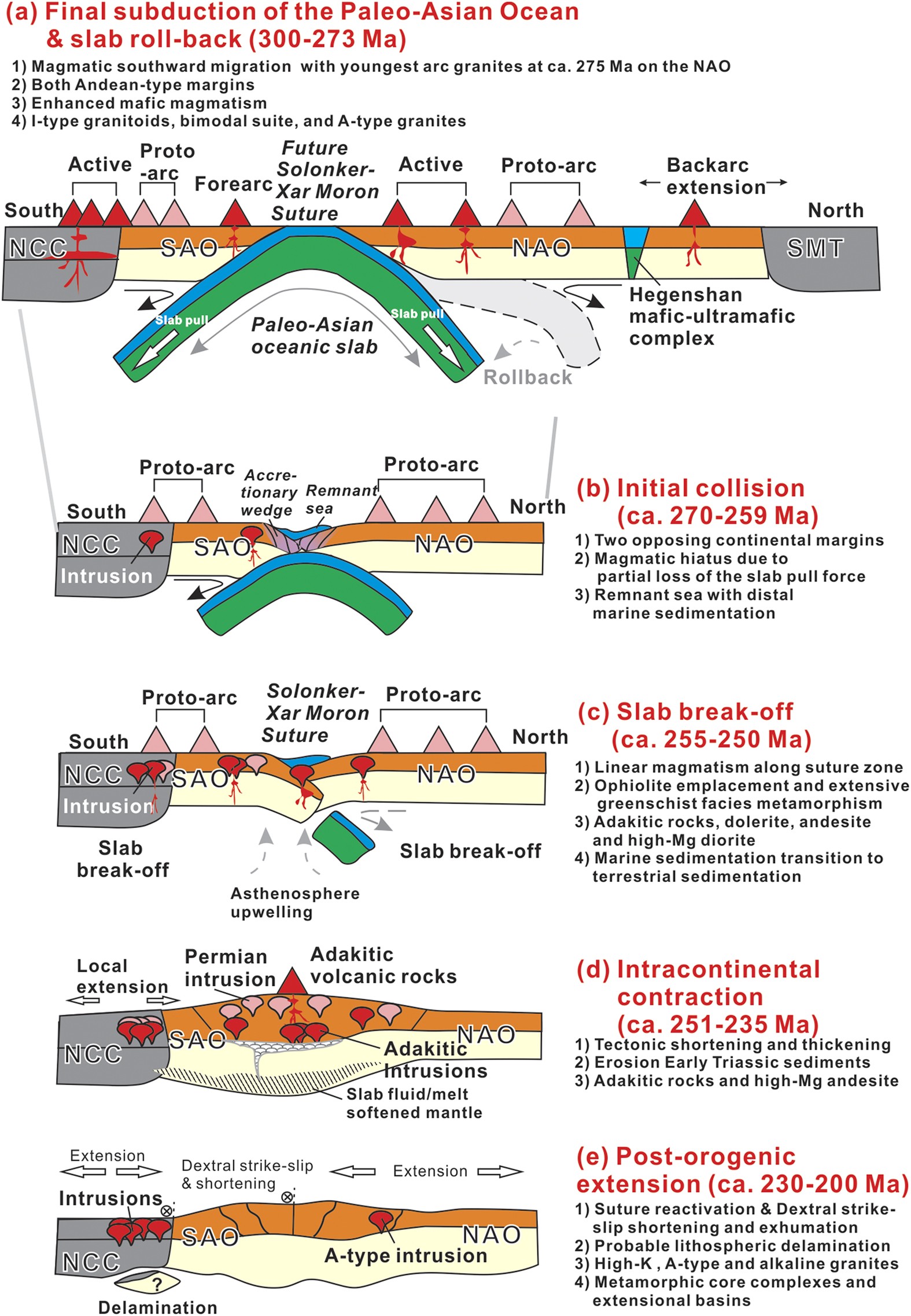

Schematic tectonic diagram showing the final amalgamation of the Central Asian Orogenic Belt and tectono-magmatic evolution along the Solonker-Xar Moron suture zone.
