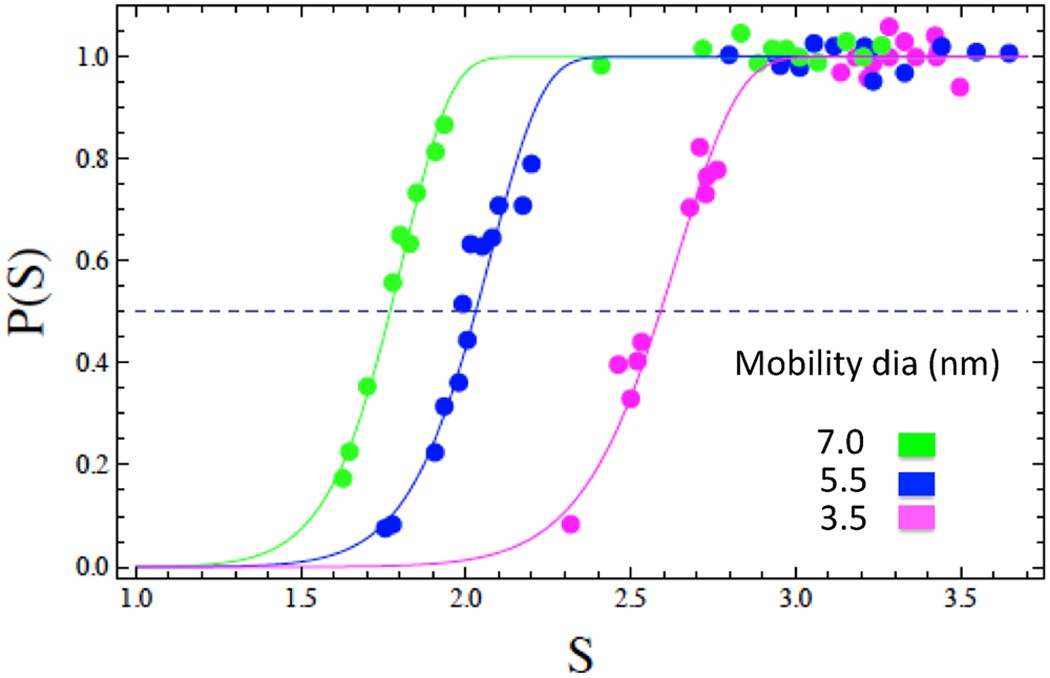

Figure 2

Heterogeneous nucleation probabilities³² and corresponding model fits (Eq. 9).

The dashed line indicates 50% of activated particles from which corresponding onset saturation ratios S_onset can be obtained. The fit parameters n^* and S_onset are given in Table 1.
