Figure 5
From: Small molecule activation of NOTCH signaling inhibits acute myeloid leukemia
NMHC promoted NOTCH1 processing.

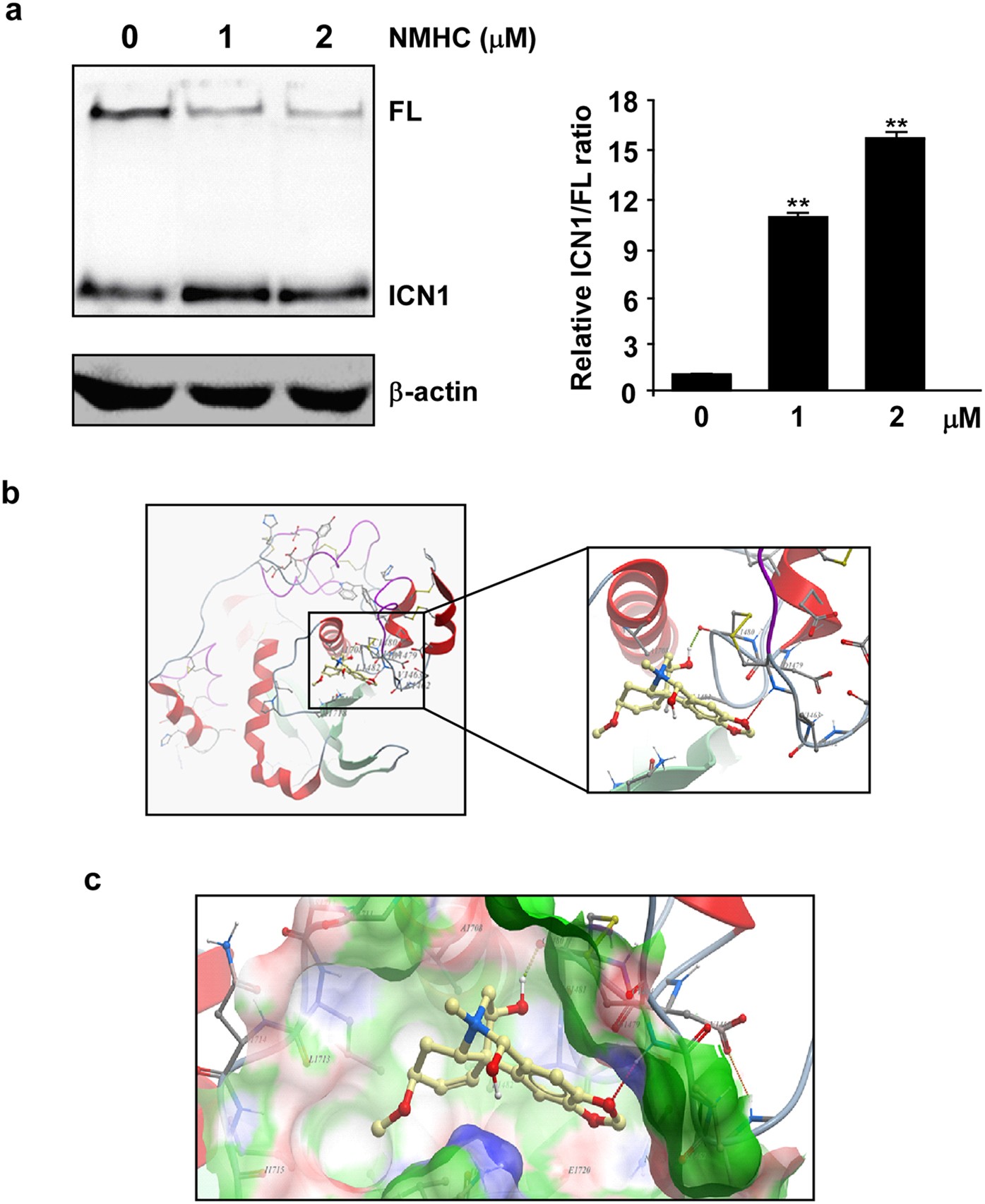

(a) Effects of NMHC on the efficiency of ICN1 generation. HL-60 cells were treated with indicated doses of NMHC for 24 h and the full length (FL) or cleaved NOTCH1 (ICN1) was detected by immunoblotting. Protein band intensity was quantified by ImageJ and ratios of ICN1/FL were calculated and plotted on the right. P-values were derived from Student’s t-test (*P < 0.05, **P < 0.01). (b,c) Cartoon representation of NMHC (yellow sticks) docked in the hydrophobic cavity of the NOTCH1 NRR (red and green). The X-ray crystal structures of the NRR domain was from PDB (code: 3ETO) and molecular modeling method was employed to investigate the interaction of NMHC with NRR. In b, the right panel is an amplification of the defined region in the box shown on the left.
