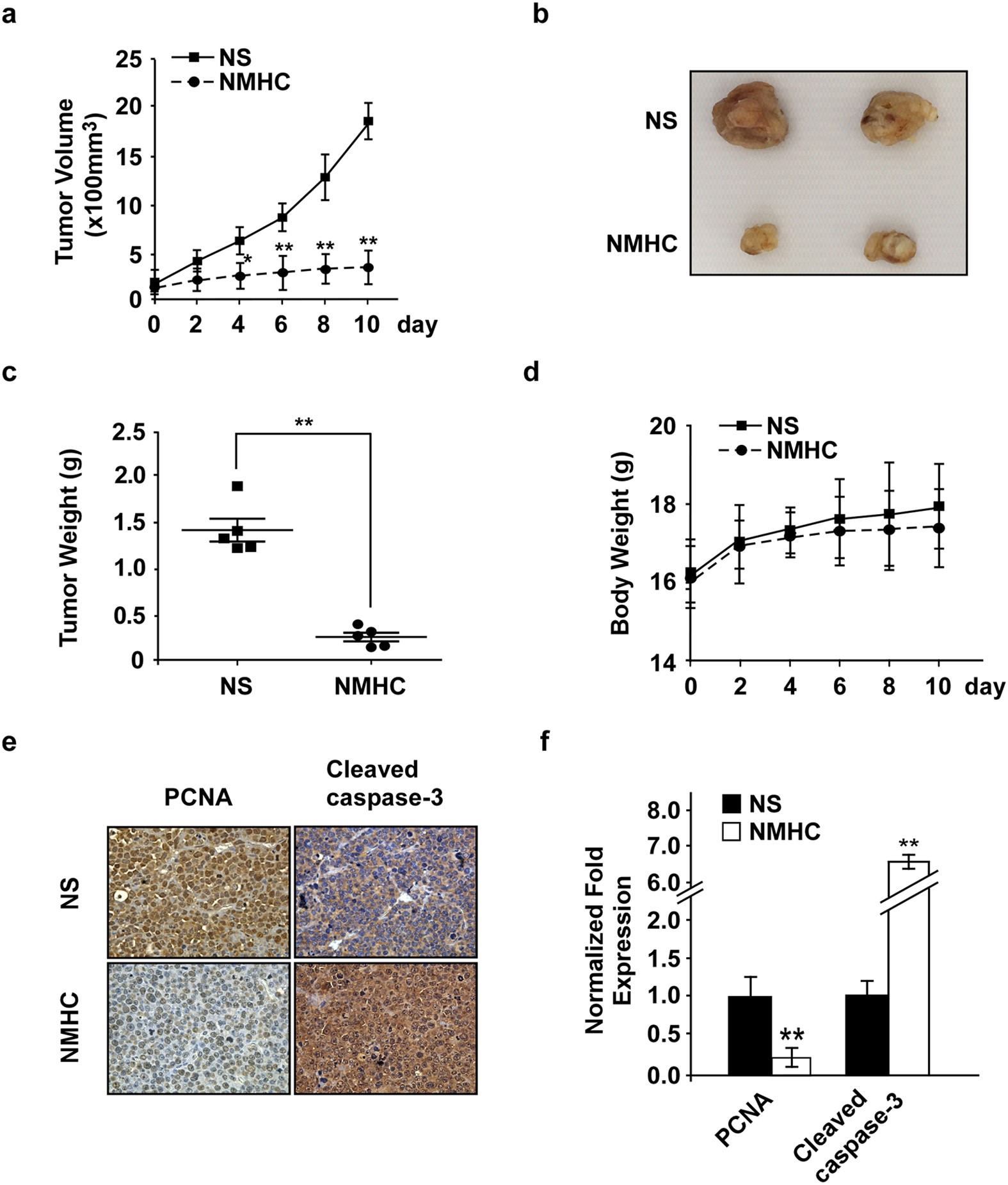

Figure 6
From: Small molecule activation of NOTCH signaling inhibits acute myeloid leukemia
NMHC impeded tumor development in a human AML xenograft model.
5 × 106 HL-60 cells were subcutaneously injected into female nude mice. When tumor volume reached 100 mm3, 40 mg/kg NMHC (n = 5) or NS (n = 5) was administrated once each day. (a) Tumor volumes were measured every other day post-injection and presented as square (untreated) or round (treated) symbols with mean values ± SD. (b) Representative tumor images were shown upon normal saline or NMHC treatments for 10 days. (c) Tumor weights were exhibited as square (untreated) or round (treated) symbols. The black bar in the middle represented the average tumor weight of each group. (d) Body weights were recorded post-treatments every other day and presented as mean values ± SD. Histochemical stains of cleaved Caspase-3 and PCNA in tumors from treated or untreated animals were shown in (e) and quantified by Ipwin32 software and presented as mean ± SD (f). P-values were derived from Student’s t-test (*P < 0.05, **P < 0.01; NMHC treatments versus control treatments).
