Figure 2
From: Generation of an ultra-short electrical pulse with width shorter than the excitation laser

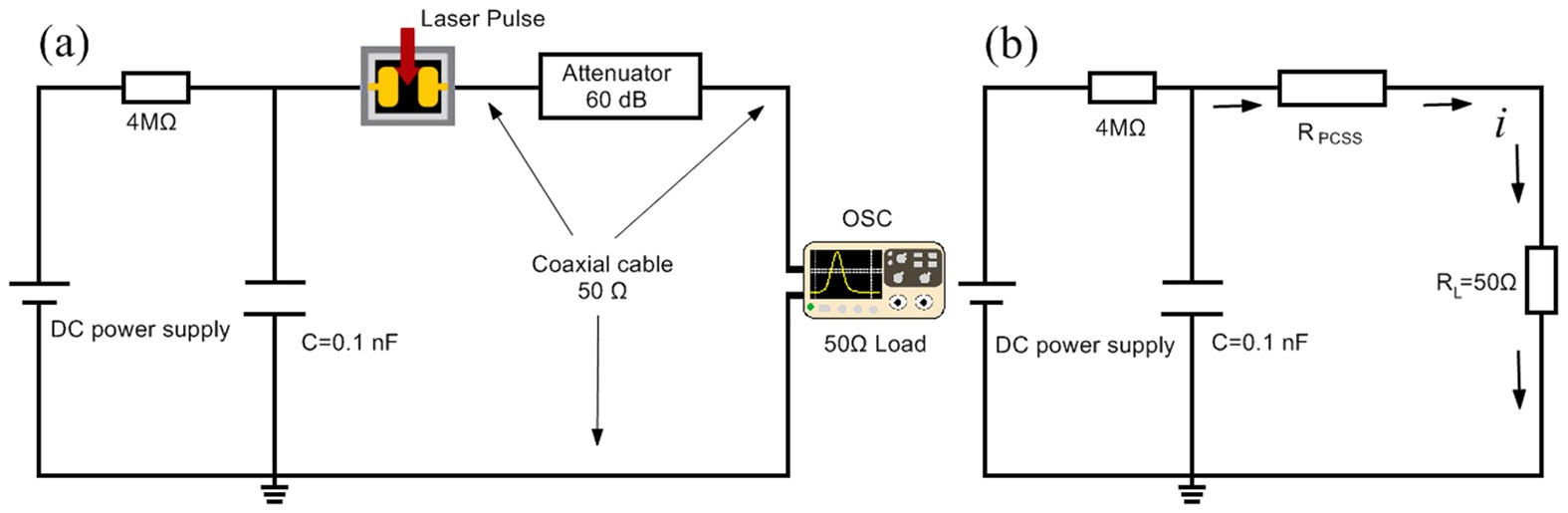

(a) Schematic diagram of measurement circuit for the PCSS. (b) Lumped-parameter circuit model of measurement circuit for the PCSS.
