Figure 2
From: Onset of frictional sliding of rubber–glass contact under dry and lubricated conditions

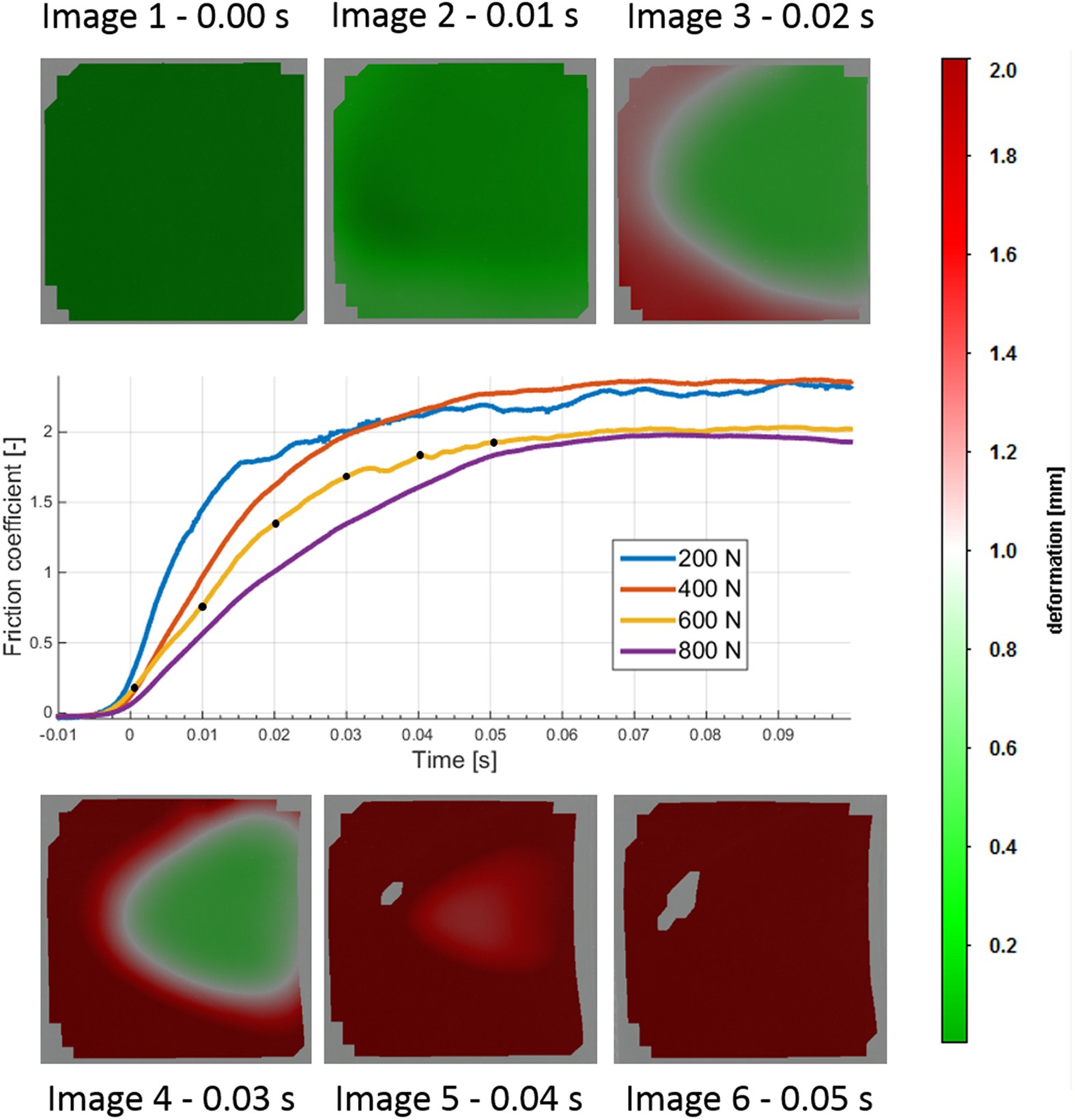

Detachment process of rubber on dry glass.
The rubber block is moving to the right. The line figure shows four different load cases and the images show the load case of 600 N (black dots indicate image snapshot). An actual high-speed photograph is at the background of the image and overlaid by a colour map to indicate local movement. A video is provided in the supplementary material.
