Figure 2: Visualization of the alignment of the seven Ilex chloroplast genomes. | Scientific Reports

Figure 2: Visualization of the alignment of the seven Ilex chloroplast genomes.

From: Chloroplast genome structure in Ilex (Aquifoliaceae)

Figure 2

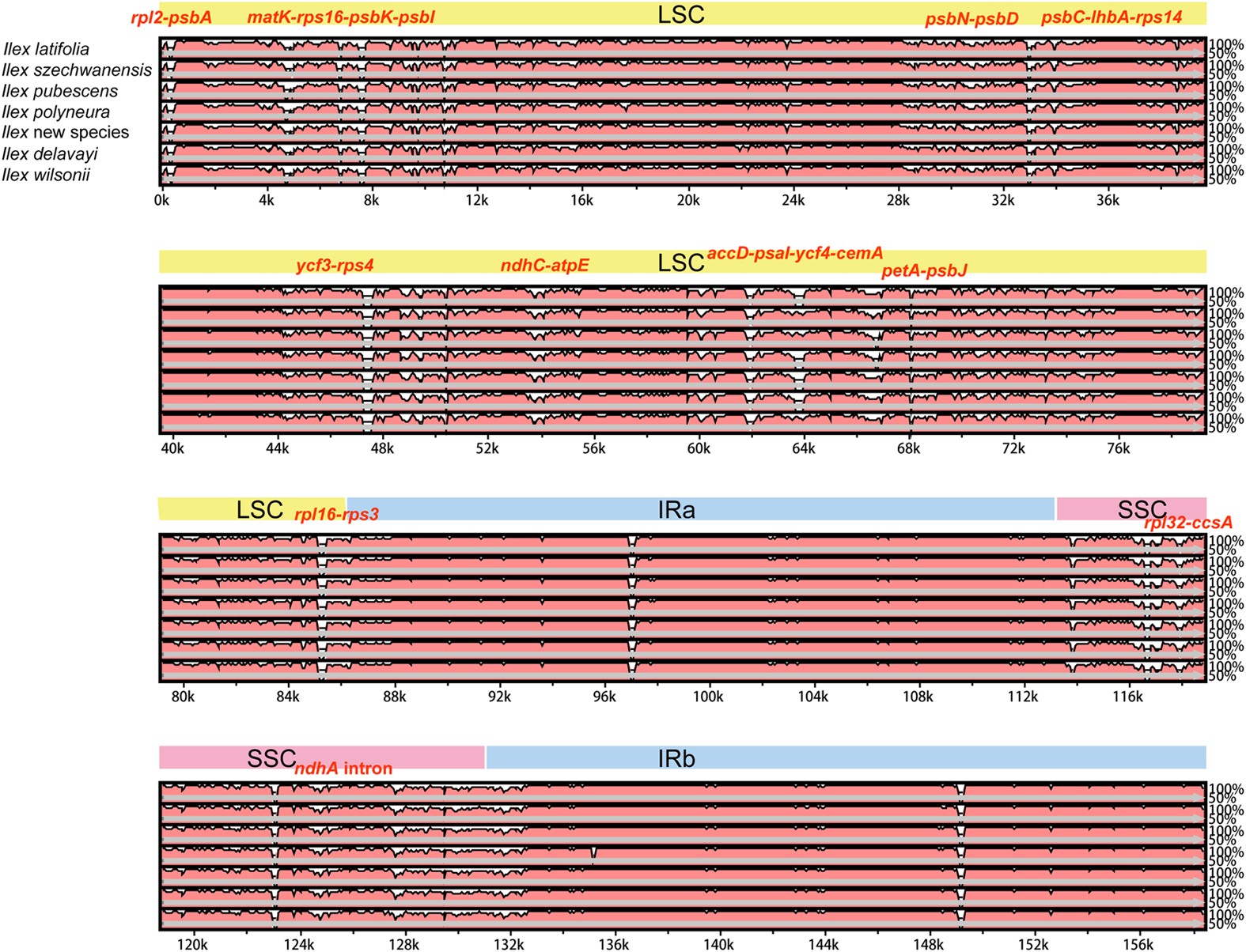

VISTA-based identity plots showing sequence identity with the Helwingia himalaica chloroplast genome as a reference. LSC indicates long single copy region; SSC indicates short single copy region; IRa and IRb indicate two inverted regions. Locations of divergent hotspot regions are labeled above alignment.
