Figure 3

From: Membrane protein assembly: two cytoplasmic phosphorylated serine sites of Vpu from HIV-1 affect oligomerization

Figure 3

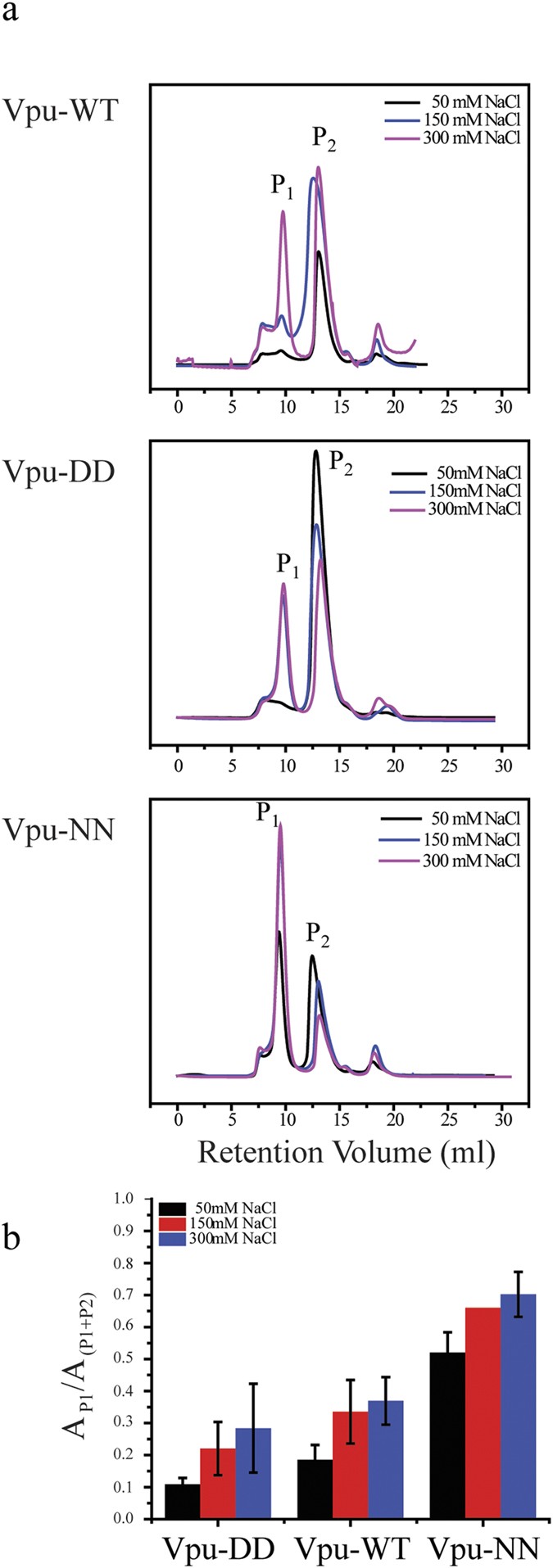

Dynamics of Vpu-WT, Vpu-NN and Vpu-DD oligomerization in different salt solution using size exclusion chromatograms (SEC).

(a) SEC profiles of Vpu-WT, Vpu-NN and Vpu-DD in different salt buffer concentration (50 mM NaCl, 150 mM NaCl and 300 mM NaCl). (b) Comparison of peak area, P1/(P1 + P2), with different salt concentrations of Vpu-WT, Vpu-NN and Vpu-DD.
