Figure 8
From: Soot Combustion over Nanostructured Ceria with Different Morphologies

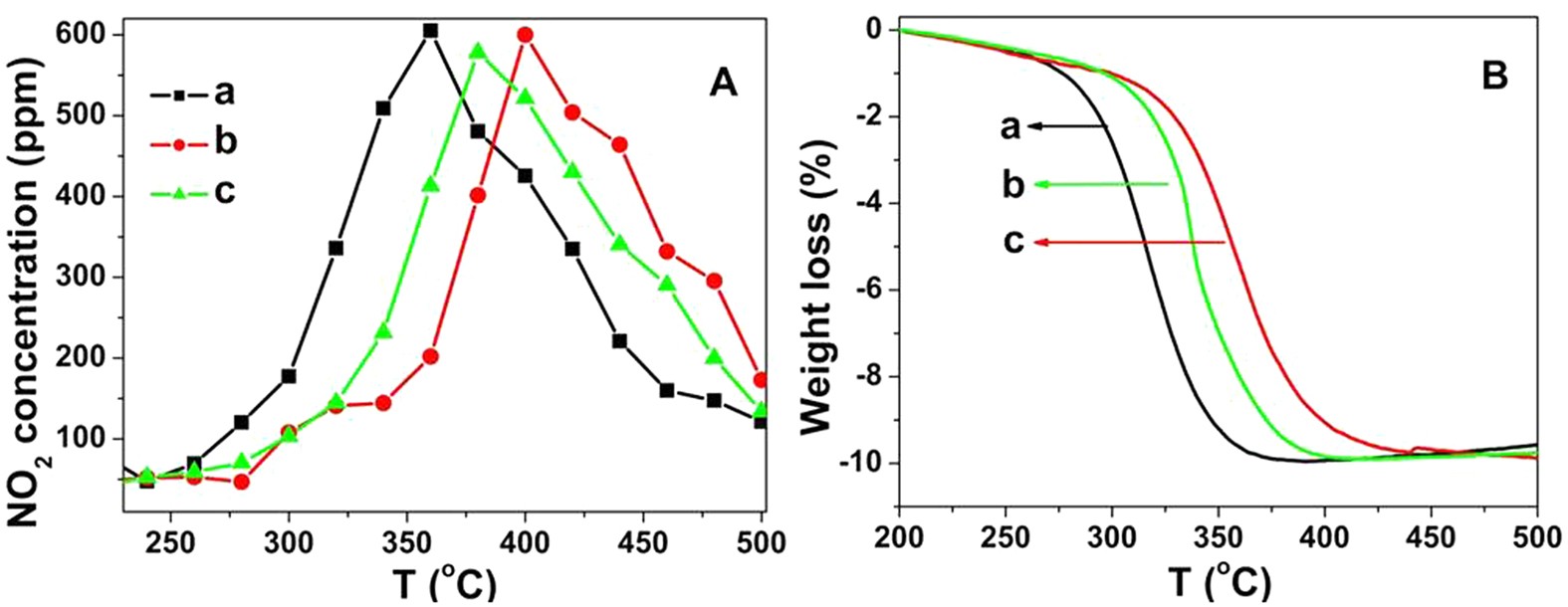

Evolutions of NO2 concentration (A) and the TGA profile (B) for (a) Ce-R, (b) Ce-P and (c) Ce-F mixed with soot under the tight contact condition in 1000 ppm NO and 10vol%O2/N2.
