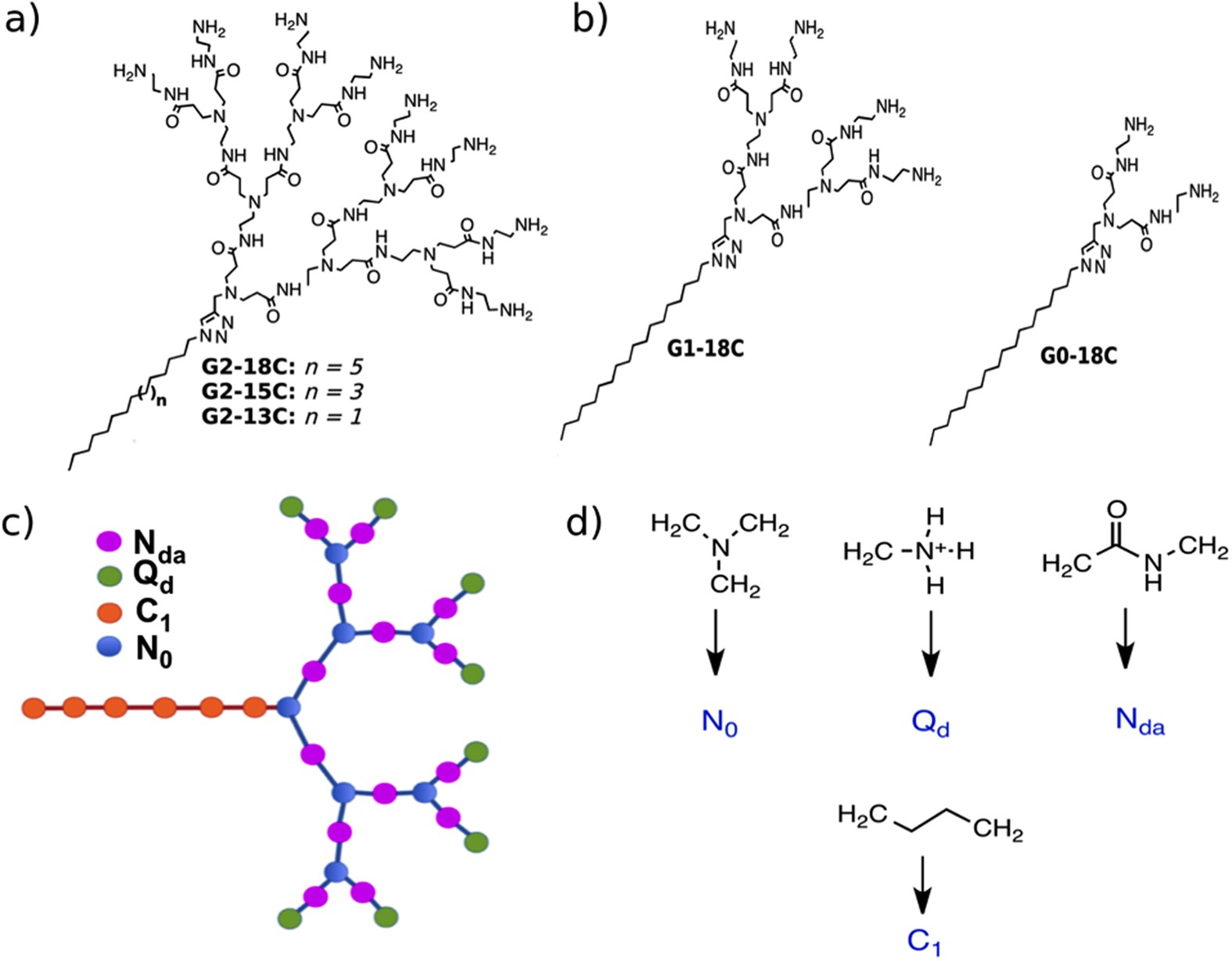

Figure 1

(a) As described by Yu et al.¹⁶, full-atom chemical structure of AD, composed of a G2 dendron section and an aliphatic tail, having 18 carbons (n = 5), 15 carbons (n = 3) and 13 carbons (n = 1). (b) Full-atom chemical structure of AD composed of a G1 or G0 dendron section and an 18 carbons aliphatic tail (c) Structure of 18C tail-length AD using CG beads. (d) Mapping of dendron chemical groups, as described by Lee and Larson^29,30. and CG C₁ tail beads as described by Marrink et al.²⁶, in the CG lipid force field.
