Figure 2: Network activity, order parameter and susceptibility.
From: Griffiths phase and long-range correlations in a biologically motivated visual cortex model

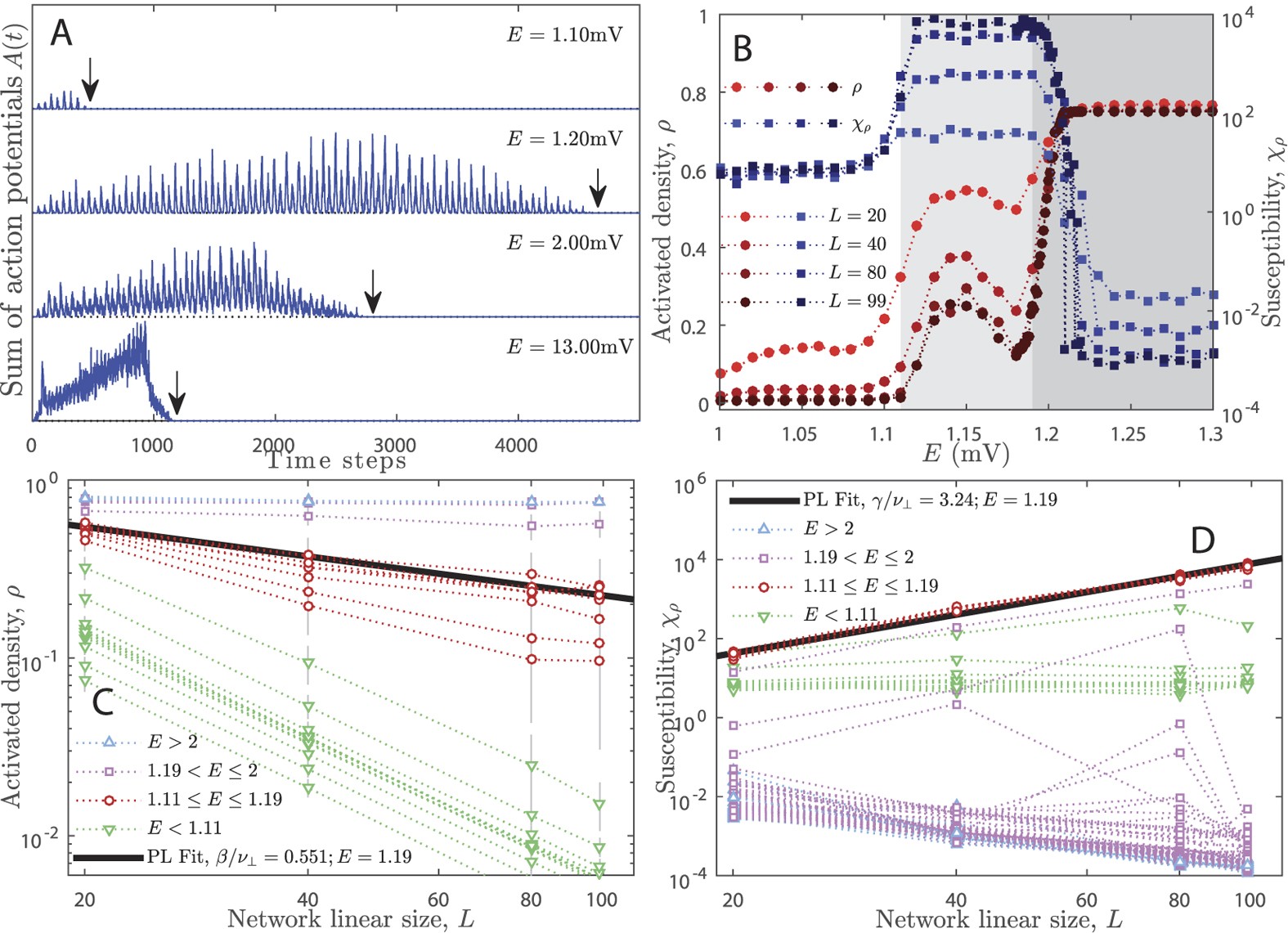

Panel A: Temporal profile of the avalanches for many EPSP. Arrows mark the processing time T of the network. For E = 1.1 mV, only very small avalanches occur; E = 1.2 mV shows many small avalanches; for E = 2.0 mV there is a dominating avalanche (compare to the dotted line that marks zero activity); and for E = 13.0 mV the dominating avalanche takes over all the dynamics. Panel B: Density of activated neurons ρ during total activity time and its associated susceptibility55 χρ = N(〈ρ2〉 − 〈ρ〉2)/〈ρ〉 as function of E for many L. Red circles (
,
,
,
