From: Dynamics of mtDNA introgression during species range expansion: insights from an experimental longitudinal study

Figure 2

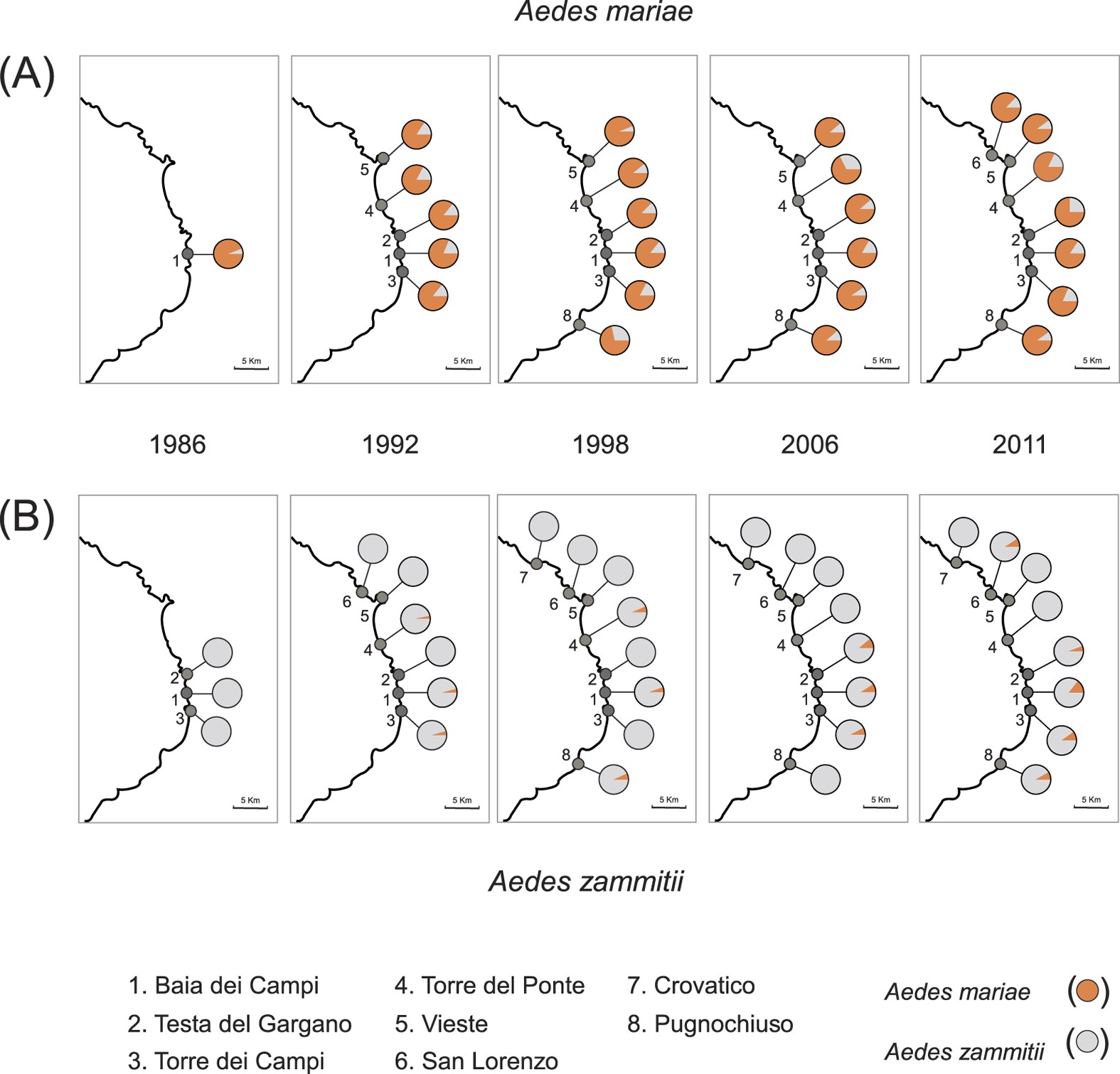

Proportion of mitochondrial DNA haplotypes found in the sympatric area.

Panel (A) Aedes mariae, Panel (B) Ae. zammitii. The characteristic haplotypes of Ae. mariae and Ae. zammitii are shown in orange and light grey, respectively. The sketch map was drawn using the software Canvas 15 (ACD systems http://www.acdsee.com/de/products/canvas-15) by tracing a map of the Gargano Promontory generated in QGIS 2.12 (http://www.qgis.org/it/site).
