Figure 7
From: Growth and wetting of water droplet condensed between micron-sized particles and substrate

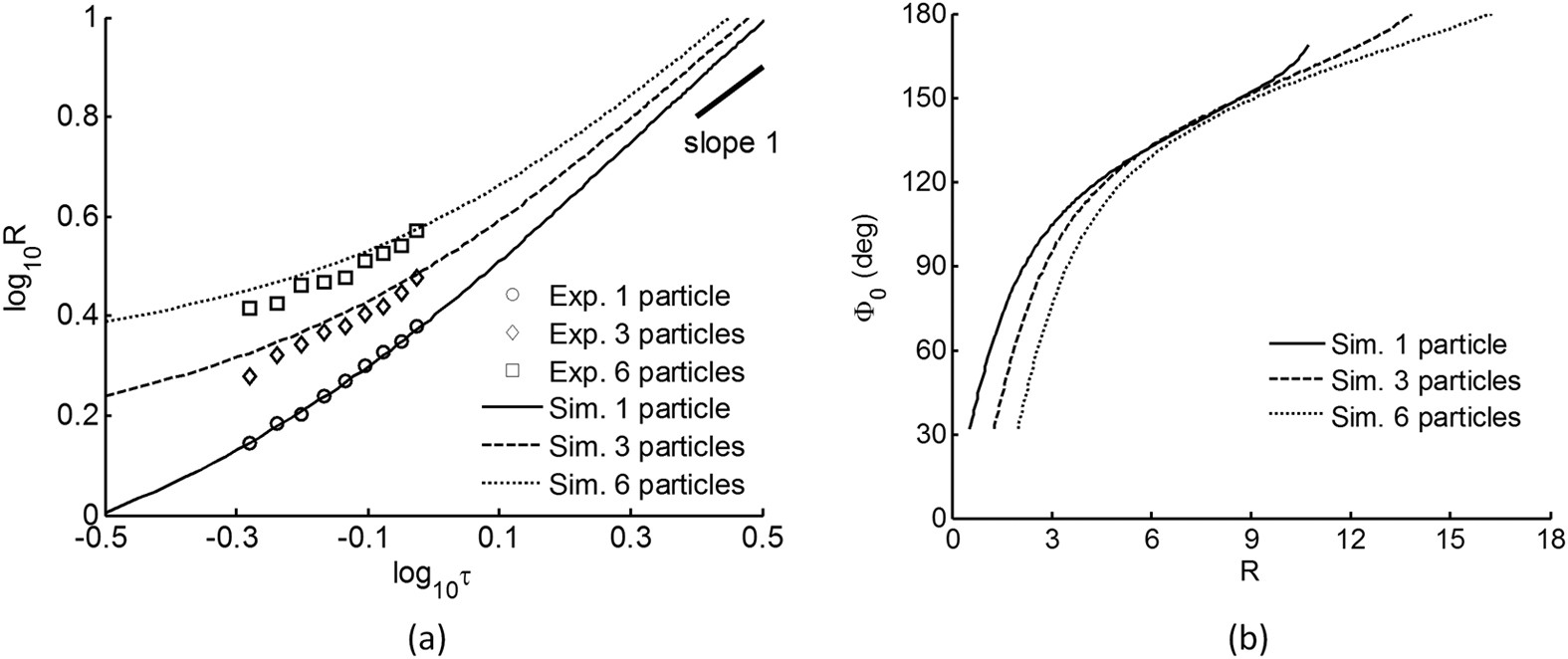

(a) Logarithmic time-plot of non-dimensional droplet radius for the cases of single particle, 3-particle and 6-particle clusters for both experimental (markers) and simulated (lines) data. Condensation rate is
 s−1 and the contact angle is 22°. Eye-guide of slope 1 refers to an idealized growth rate of a particle-free droplet. (b) Plot of droplet aspect ratio represented by wetting edge Φ0 and the non-dimensional radius R.
