Figure 2

From: Blood-borne miRNA profile-based diagnostic classifier for lung adenocarcinoma

Figure 2

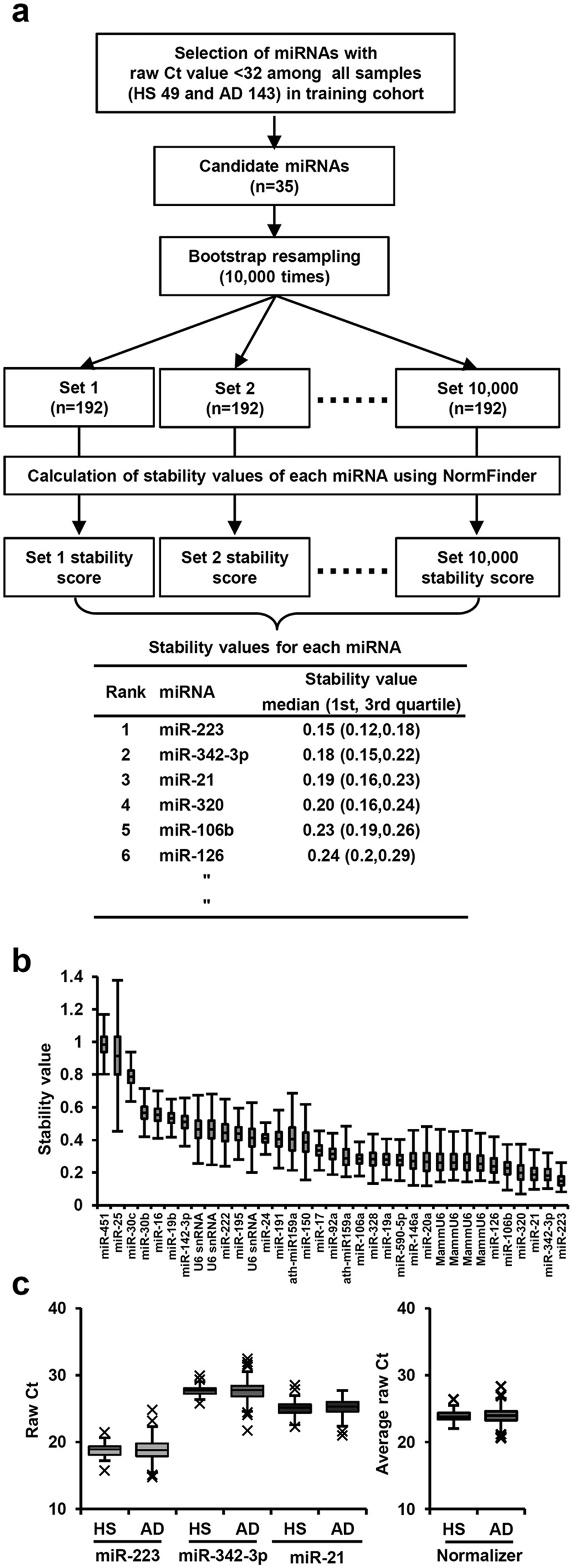

Search for miRNAs stably present in blood samples and thus suitable for normalization.

(a) Strategy for selecting stable present miRNAs using NormFinder with 10,000-times bootstrap resampling of the training cohort. (b) Stability values for each candidate for internal control miRNA. (c) Box plot analysis of Ct values of top 3 miRNAs and the resultant normalizer. HS, healthy subjects; AD, lung adenocarcinoma.
