Figure 3

From: Synthetic antimicrobial and LPS-neutralising peptides suppress inflammatory and immune responses in skin cells and promote keratinocyte migration

Figure 3

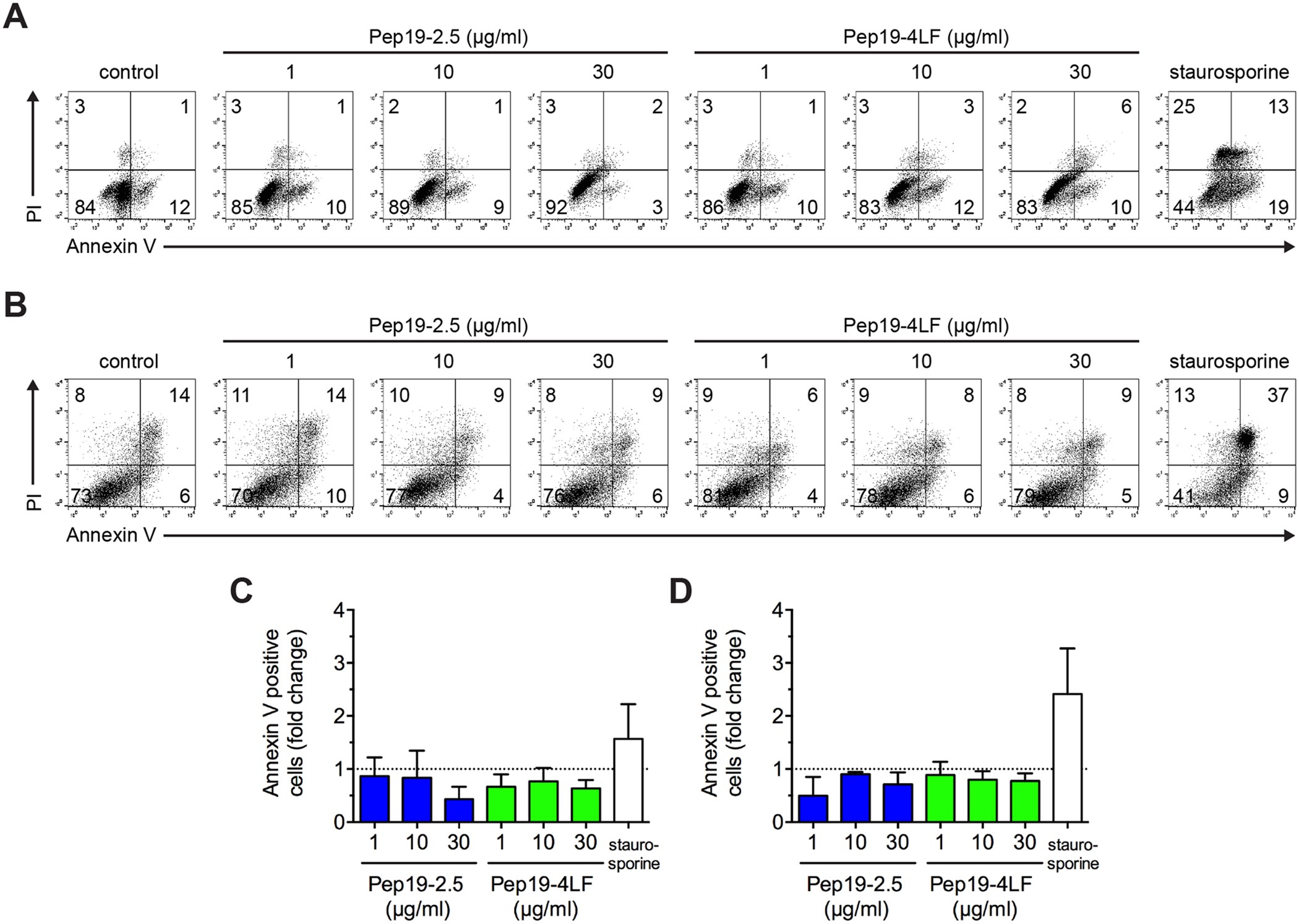

No cytotoxicity observed in antigen-presenting cells for peptide concentrations as high as 30 μg/ml.

(A,C) MoDCs and (B,D) MoLCs were stimulated with Pep19-2.5 and Pep19-4LF for 24 h. Annexin V-FITC and PI staining was performed followed by flow cytometry analysis. (A,B) Dot Plots from the same donor are representative for 3 independent experiments and percentage of stained cells is indicated. Staurosporine (1 μM) served as positive control. (C,D) Annexin V-positive cells are displayed as fold change compared to control. Data are mean + SD (n = 3).
