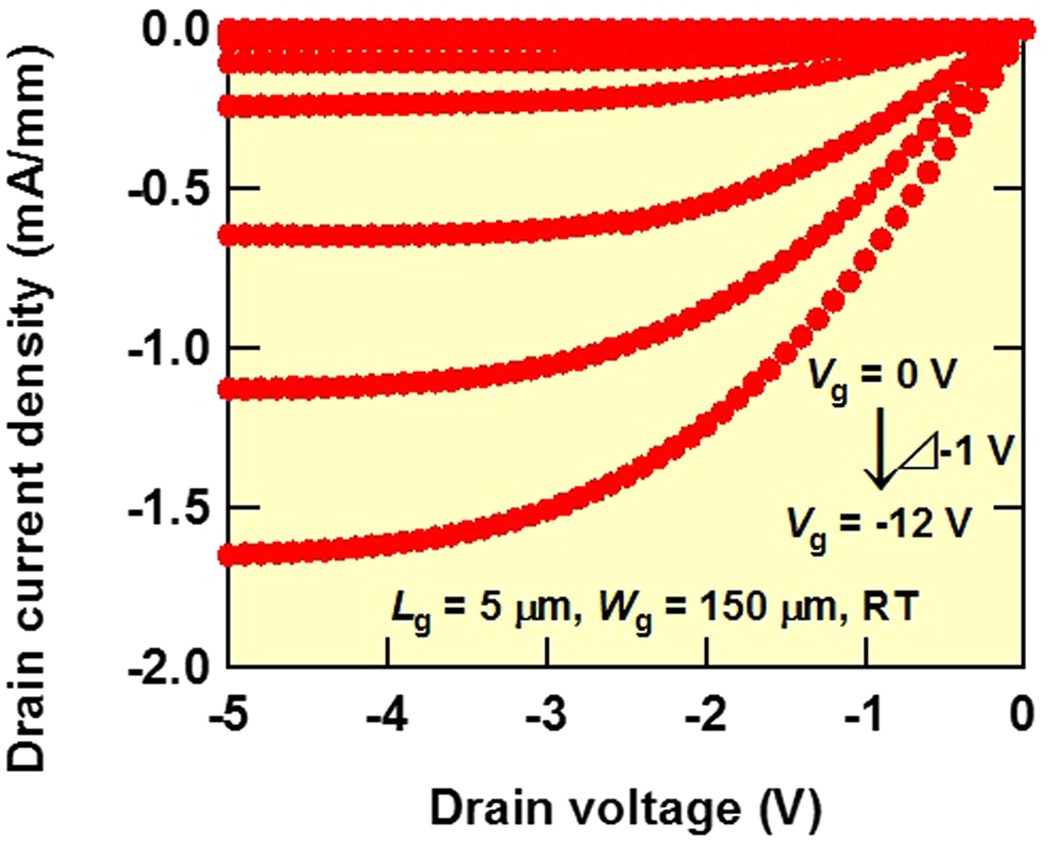

Figure 2
Id–Vds characteristics of diamond MOSFET with Lg = 5 μm and Wg = 150 μm at room temperature.
Applied Vg and Vds range from 0 to −12 V with a voltage step of −1 V and from 0 to −5 V with a voltage step of −0.1 V, respectively.
