Figure 1

From: Distinct response of the hepatic transcriptome to Aflatoxin B1 induced hepatocellular carcinogenesis and resistance in rats

Figure 1

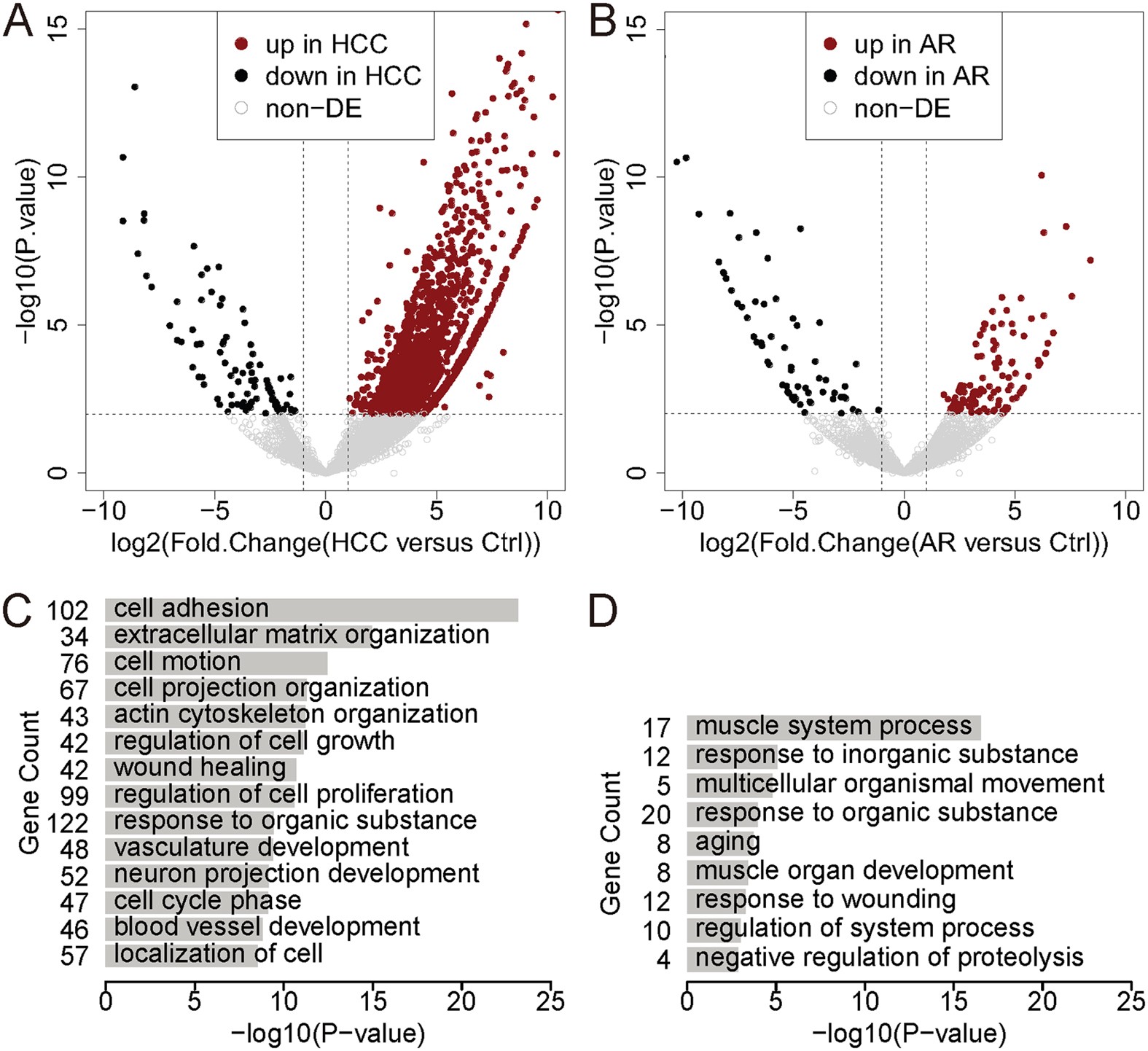

Extensive disturbance in gene expression in AFB1 hepatocellular carcinogenesis and resistance.

Volcano plots show differentially expressed genes (DEGs) in the hepatocellular carcinoma (HCC) sample (A) and the AFB1 resistance (AR) sample (B) compared to the control sample. Bar plots show the biological process GO terms for which the DEGs in the HCC sample (C) and the AR (D) sample are enriched.
