Figure 2

The promoter activity of GmExo70J genes in the floral organ-supporting receptacles of transgenic Arabidopsis.

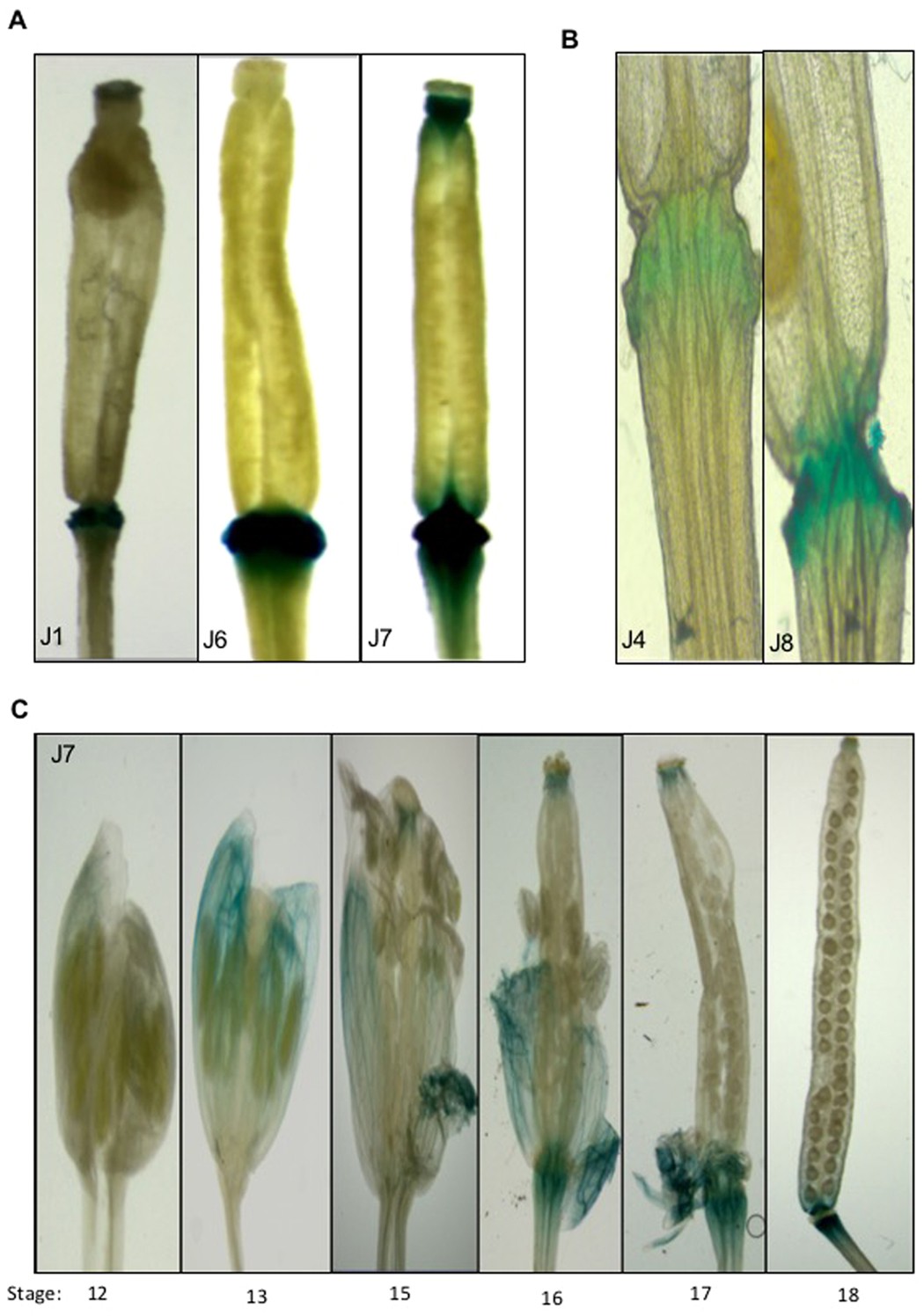

(A) Histochemical analysis of the promoter activities of GmExo70J1 (J1), GmExo70J6 (J6) and GmExo70J7 (J7) in the floral organ-supporting receptacles of transgenic Arabidopsis flowers at stage 17. (B) Histochemical analysis of the promoter activities of GmExo70J4 (J4) and GmExo70J8 (J8) in the floral organ-supporting receptacles of transgenic Arabidopsis flowers at stage 17. (C) Histochemical analysis of the promoter activity of GmExo70J7 (J7) in the floral organ-supporting receptacles of transgenic Arabidopsis flowers at different stages.
