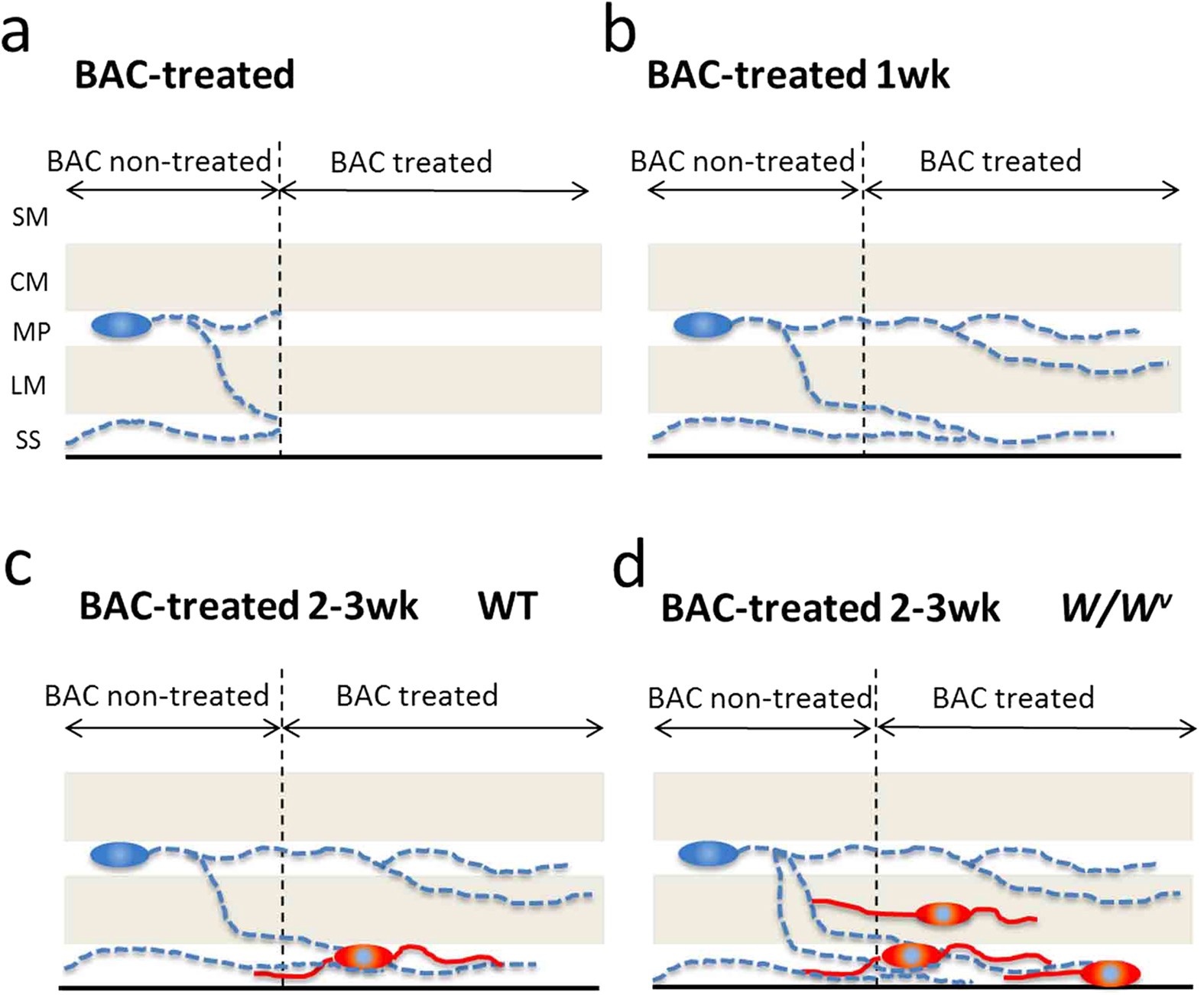

Schematic summary.

After BAC treatment, neurons and nerve fibers observed in the MP, LM and SS (blue) disappeared (a) and subsequent infiltration of nerves from intact areas was observed 1 week later (b). Beginning at 2 weeks, new neurons and their associated fibers appeared ectopically (red) in the LM and SS of both wildtype (c) and W/Wv (d) mice. However, the number of new neurons was markedly greater in W/Wv than in wildtype mice.
