Figure 3: HMGB1 induced albumin endocytosis by vascular endothelial cells. | Scientific Reports

Figure 3: HMGB1 induced albumin endocytosis by vascular endothelial cells.

From: High Mobility Group Box Protein 1 Boosts Endothelial Albumin Transcytosis through the RAGE/Src/Caveolin-1 Pathway

Figure 3

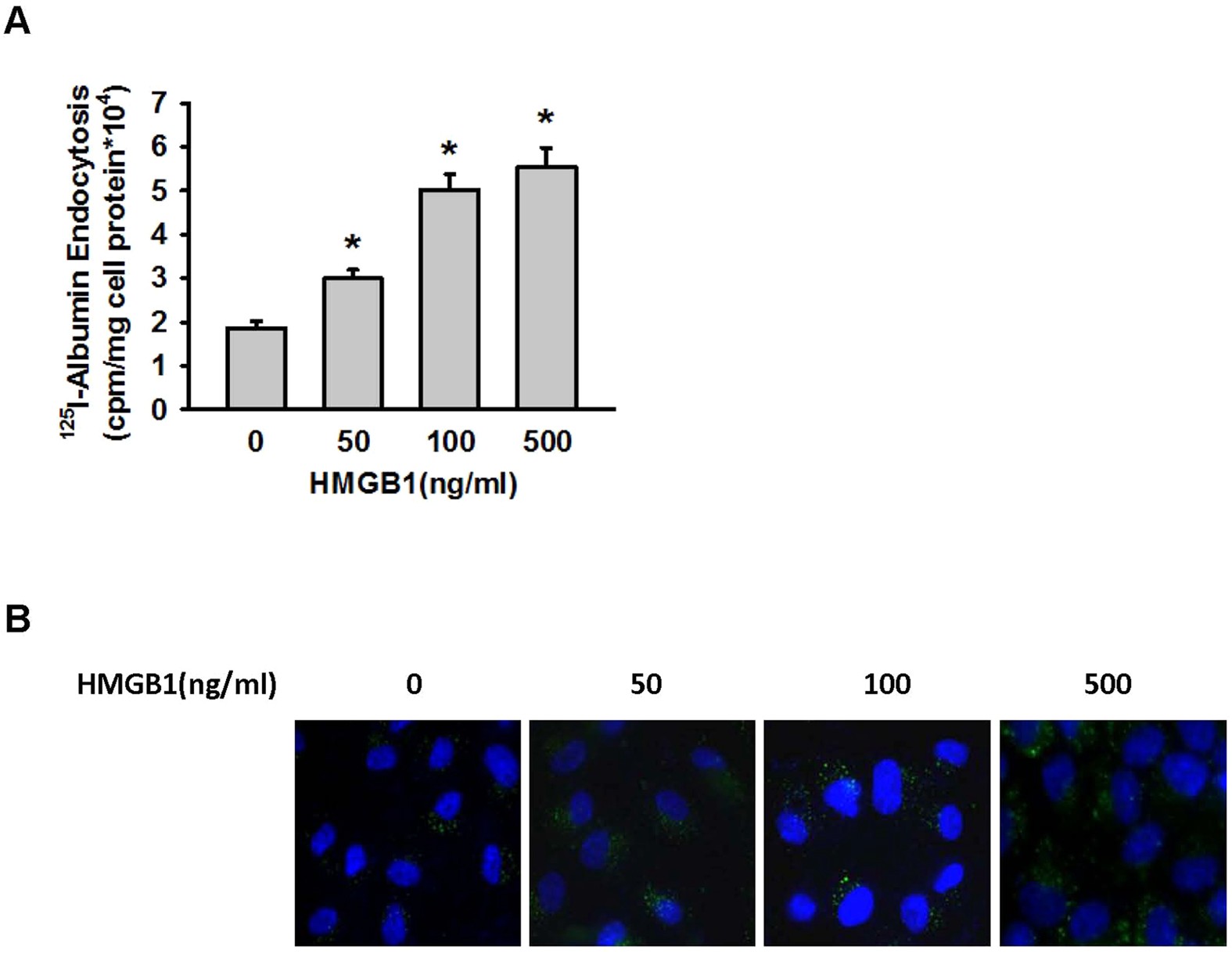

(A) MLVEC monolayers were treated with HMGB1 and 125I-albumin. After 30 min, the cells were lysed for radioactivity detection. *Compared with the control group, p < 0.05. (B) MLVEC monolayers were treated with HMGB1 and AlexaFluor 488-labeled albumin. After 30 min, the cells were examined by confocal microscopy to quantify the amount of albumin endocytosed. For each group, n = 4 to 6.
