Figure 1

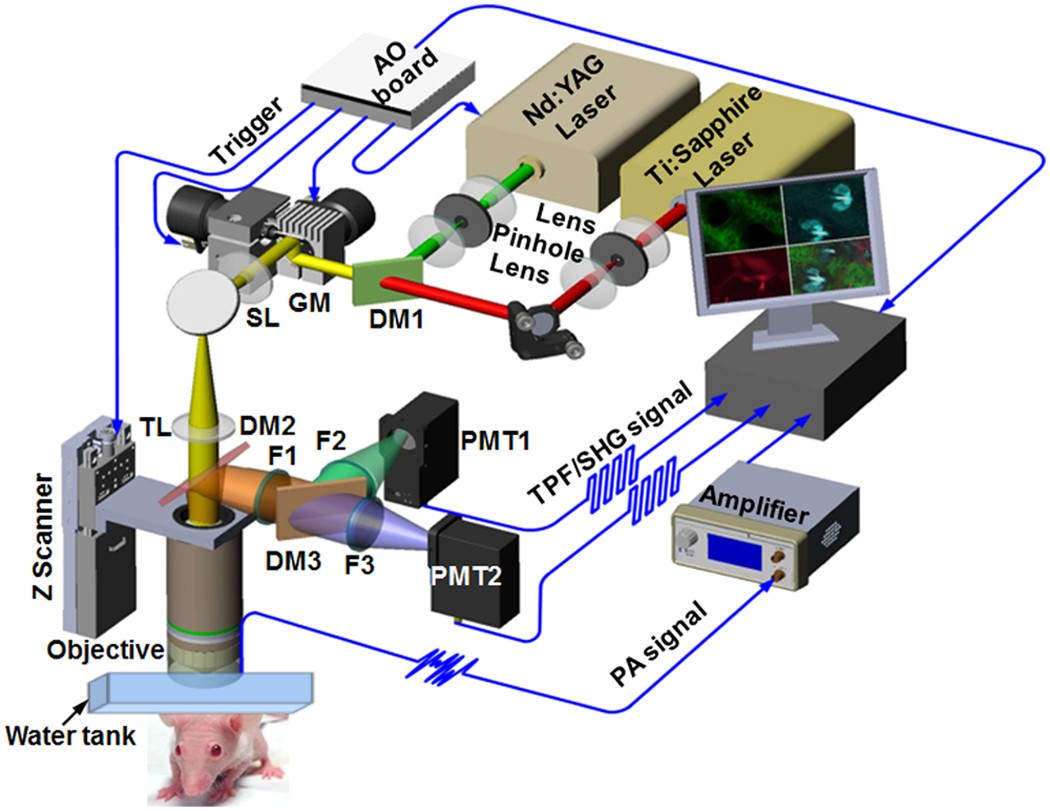

Schematic diagram of the multimodal microscopic system integrating photoacoustic, two-photon and second harmonic generation microscopies.
DM: dichroic mirror; GM: galvanometer; SL: scan lens; TL: tube lens; PMT: photomultiplier.
