Figure 3
From: Tracking objects outside the line of sight using 2D intensity images

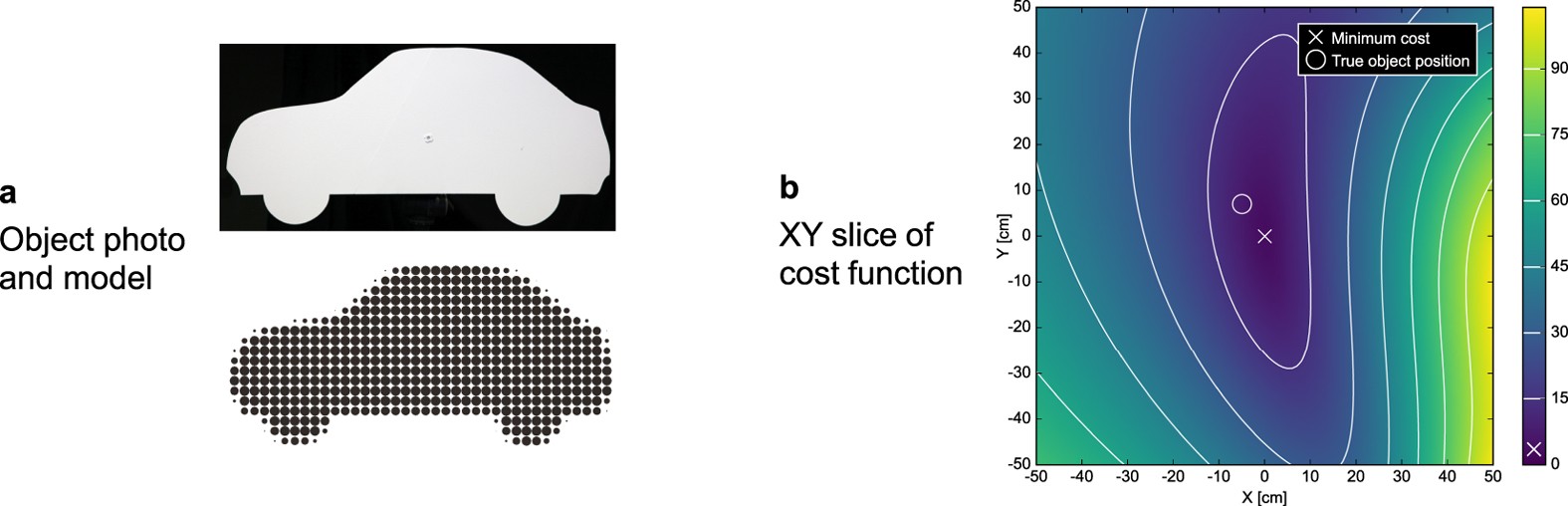

Object model and cost function used for tracking.
