Figure 4
From: Viruses-to-mobile genetic elements skew in the deep Atlantis II brine pool sediments

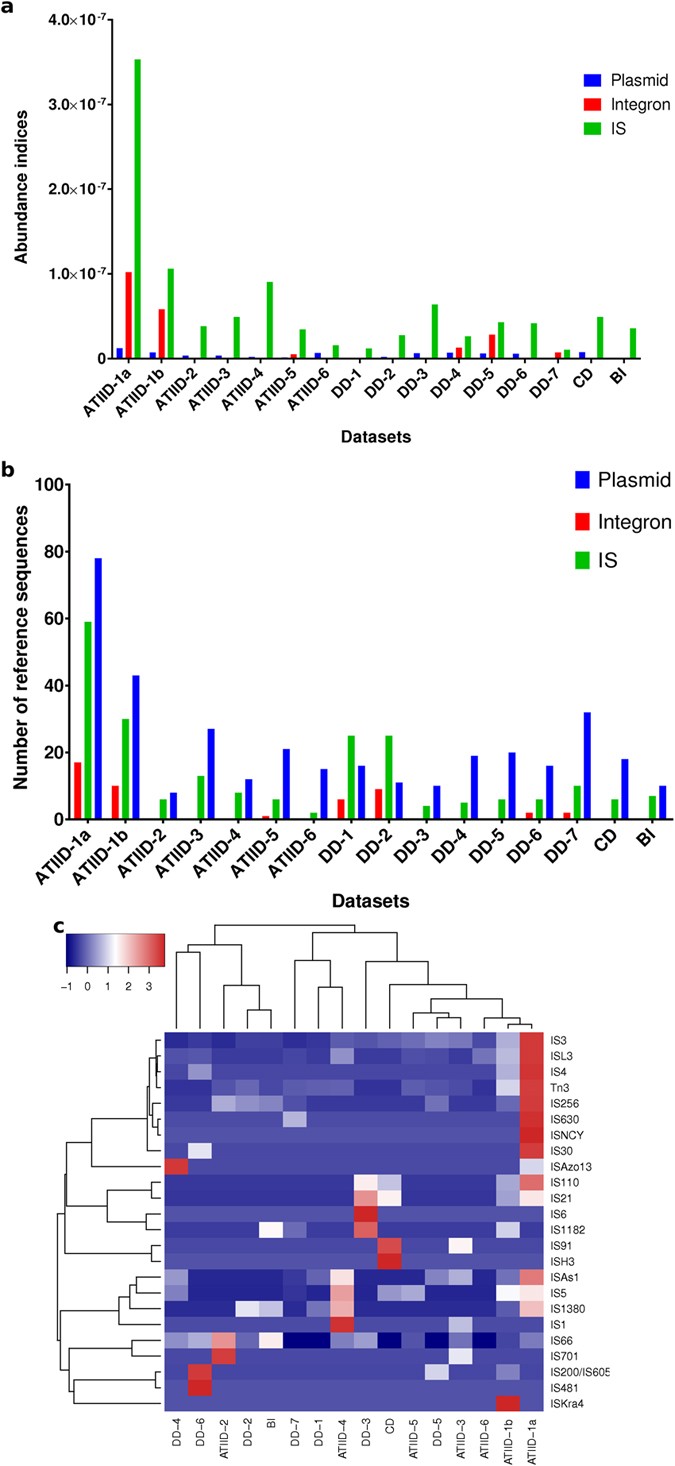

Abundance and diversity of mobile genetic elements in the Red Sea metagenomes.
(a) Abundance of mobile genetic elements. (b) Diversity of mobile genetic elements. (c) Heat map based on the abundance of insertion sequence families. ATIID, Atlantis II Deep; DD, Discovery Deep; CD; Chain Deep, BI, Brine Influenced; IS, Insertion sequences. Charts (a,b) were generated by GraphPad Prism software, while heatmap (c) was generated by heatmap package in R environment.
