Figure 4
From: Circulating plant miRNAs can regulate human gene expression in vitro

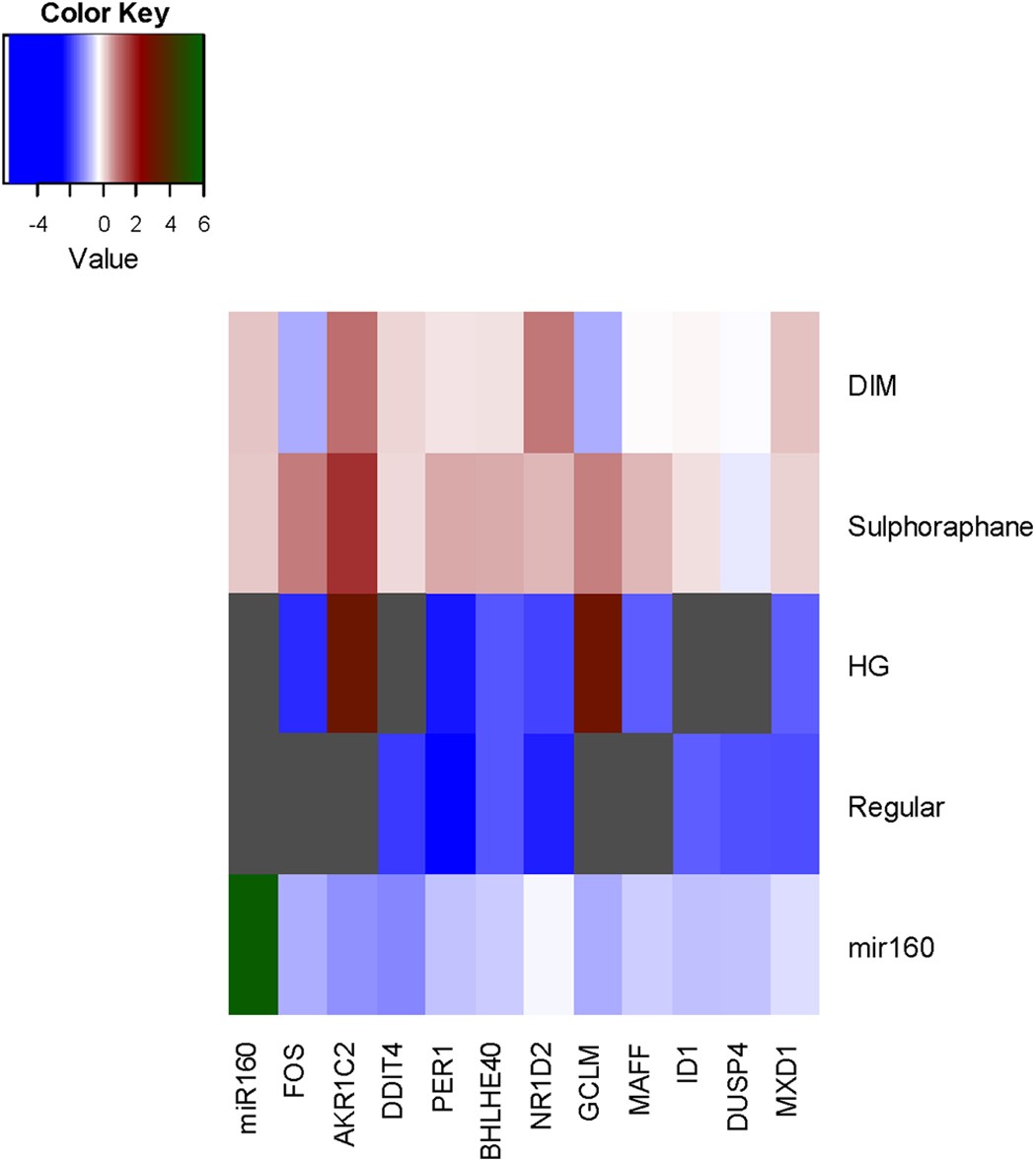

Heatmap of deregulated genes in gastric biopsies or gastric cancer cell line.
The figure shows fold change for 11 genes and miR160 in 5 set of samples. High glucosinolate (HG) and regular represent samples from gastric biopsies after ingestion of HG (enriched in sulforaphane) or regular broccoli as per Gasper et al.22, and fold change data is collected from the same paper. Sulforaphane, DIM and miR160 refer to MNK45 cell line treated with each of the named molecules, and fold change was measured by real time PCR (log transformed to be comparable to Gasper et al. fold change). Blue blocks represent downregulated genes, red to green blocks upregulated ones. Grey blocks are missing values from Gasper et al. paper.
