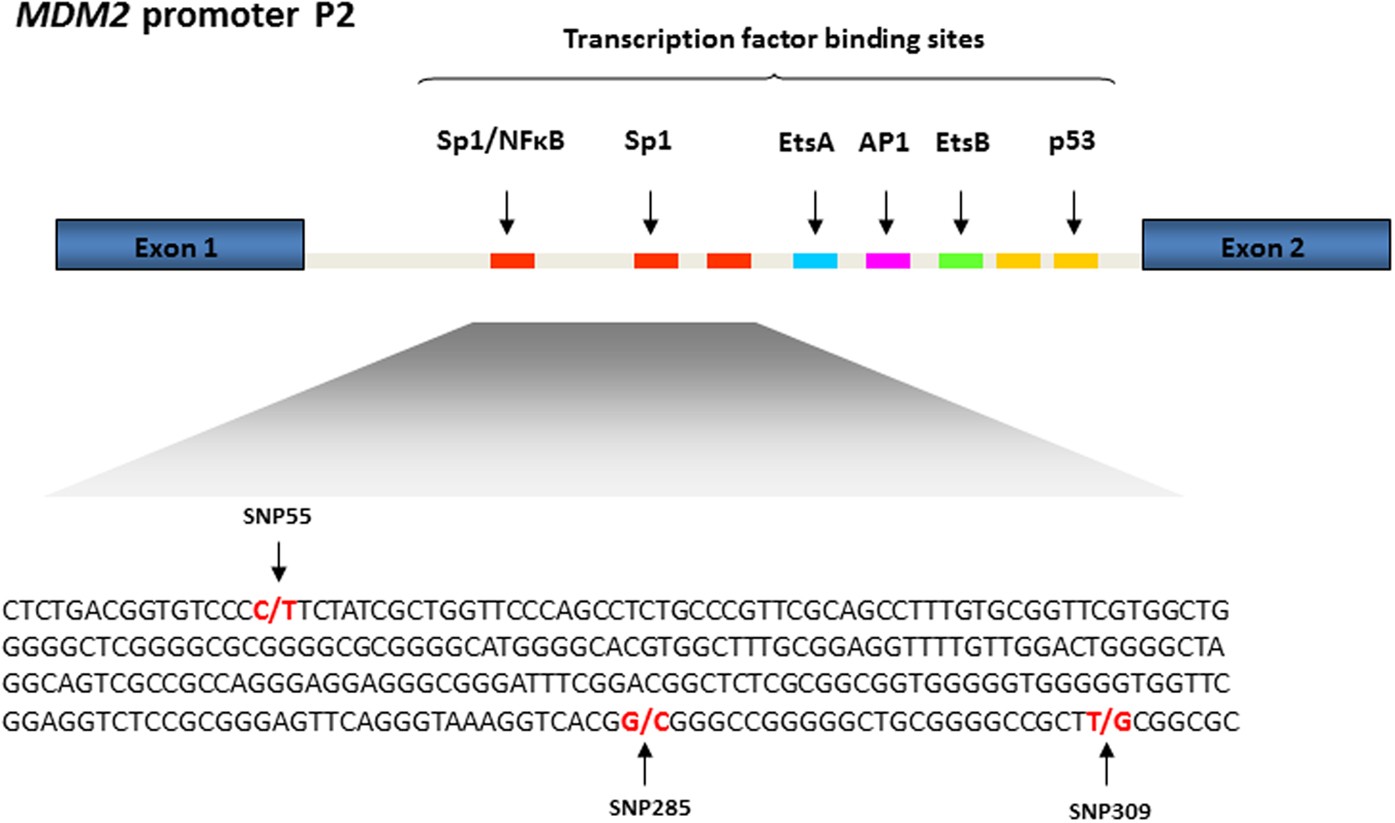

Figure 1

MDM2 promoter P2.

The promoter (P2) is located between exons 1 and 2 and regulated by many transcription factors including Sp1. Part of the promoter P2 sequence is shown in detail, in order to illustrate the sequence context of SNP55 and the two other SNPs affecting Sp1 binding (SNP285 and SNP309).
