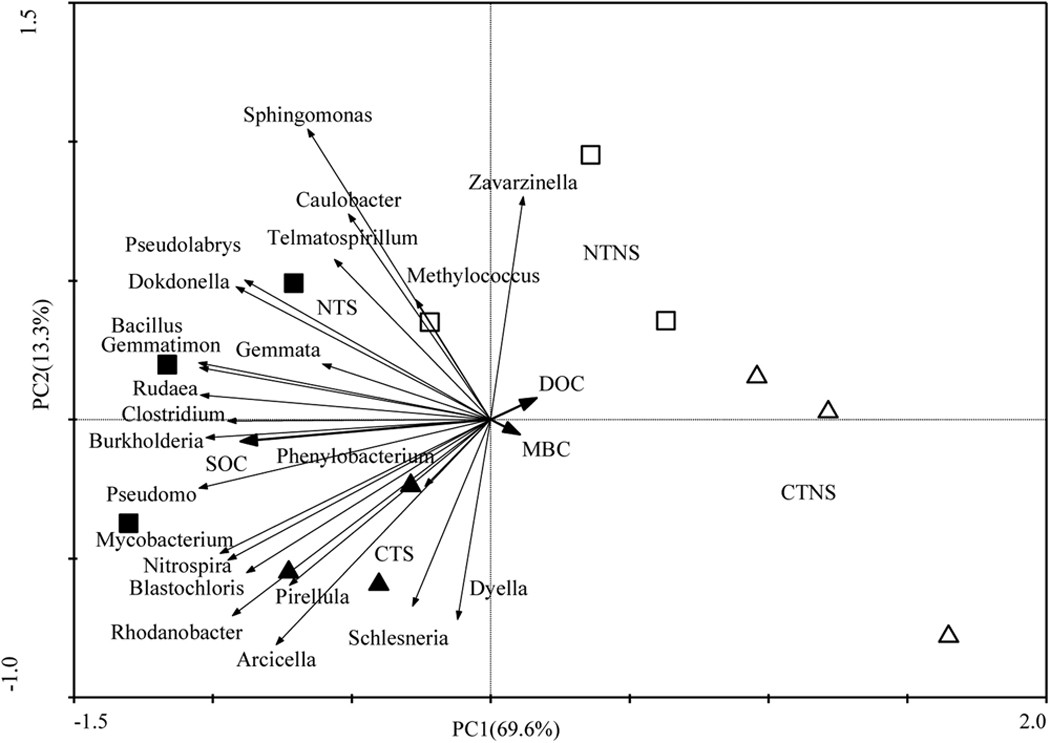

Redundancy analysis of soil bacterial communities and SOC fractions under different treatments.

CTNS (▵), conventional intensive tillage with straw removal; CTS (▴), conventional intensive tillage with straw return; NTNS (◽), no-tillage with straw removal; NTS (◾), no-tillage with straw returning; SOC, soil organic C; MBC, microbial biomass C; DOC, dissolved organic C.
