Figure 4
From: In vivo quantification of the secretion rates of the hemolysin A Type I secretion system

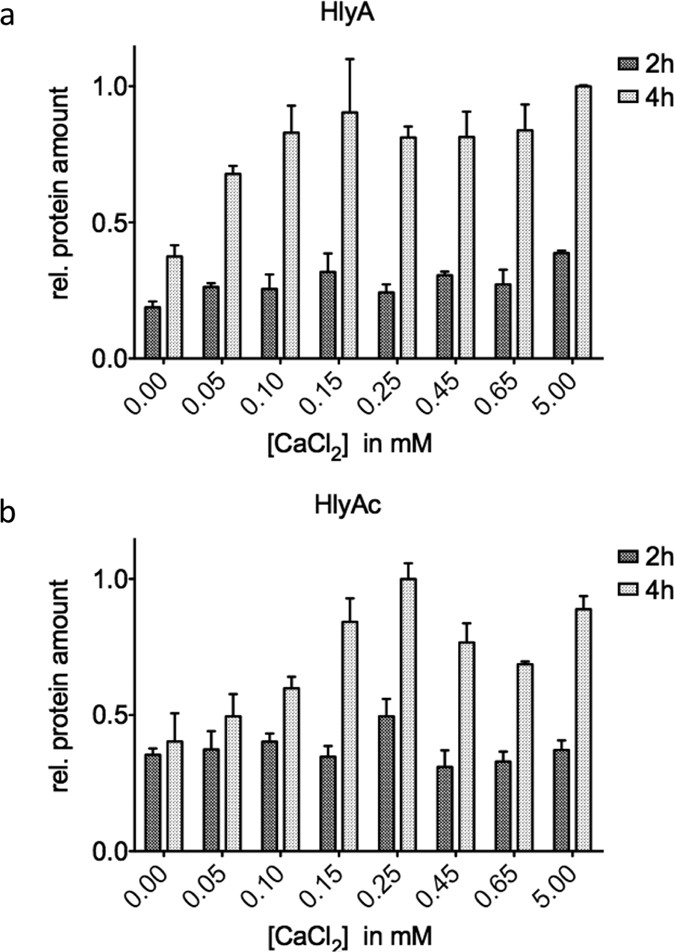

Relative amount of secreted HlyA and HlyAc in the presence of different extracellular Ca2+ concentrations.
The relative amount of secreted HlyA (a) and HlyAc (b) in the presence of different extracellular Ca2+ concentration after 2 h (dark grey bars) and 4 h (light grey bars) is summarized. Values are normalized to the highest mean value of secreted HlyA (a) or HlyAc (b) after 4 h of secretion. Error bars represent the standard deviation of at least three biological replicates.
