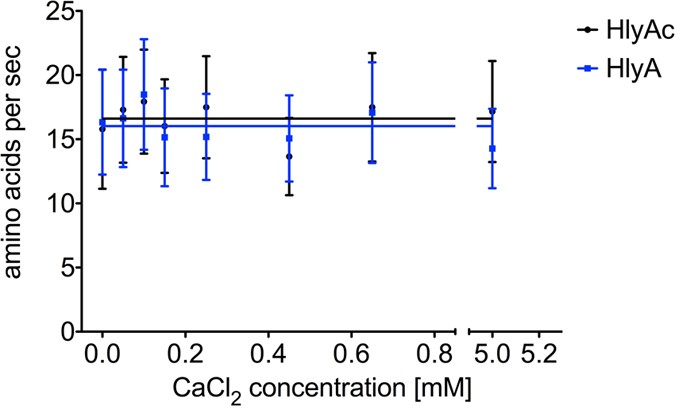

Figure 5
From: In vivo quantification of the secretion rates of the hemolysin A Type I secretion system
The secretion rate of HlyA and HlyAc is independent of the extracellular Ca2+ concentration.
Determined secretion rates of HlyA (blue cubes) and HlyAc (black dots) in the presence of different Ca2+ concentration. Shown are the mean secretion rates of triplicate secretion experiments as amino acids (aa) T1SS−1 s−1. Error bars represent the standard deviation of at least three biological replicates.
