Figure 2 | Scientific Reports

Figure 2

From: A space network structure constructed by tetraneedlelike ZnO whiskers supporting boron nitride nanosheets to enhance comprehensive properties of poly(L-lacti acid) scaffolds

Figure 2

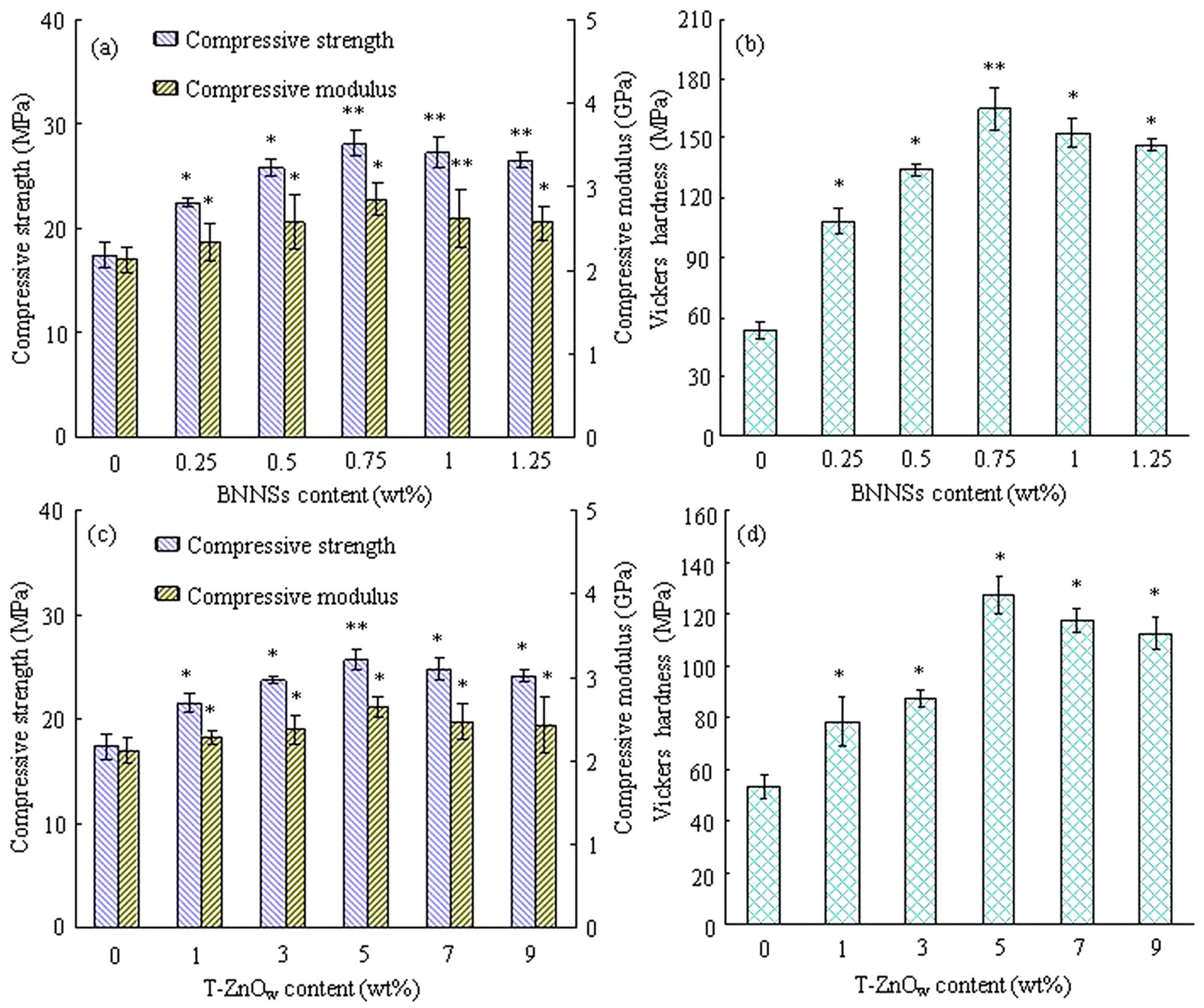

The analysis of compressive strength, modulus and Vickers hardness of scaffolds.

(a,b) PLLA/BN scaffolds; (c,d) PLLA/ZnO scaffolds. *Represents significant difference (p < 0.05) and **represents very significant difference (p < 0.01) when the PLLA/BN or PLLA/ZnO scaffolds, as compared to the PLLA scaffolds.
